101
INTELLIGENT ACTUATOR
Part 1 Installation
(26)

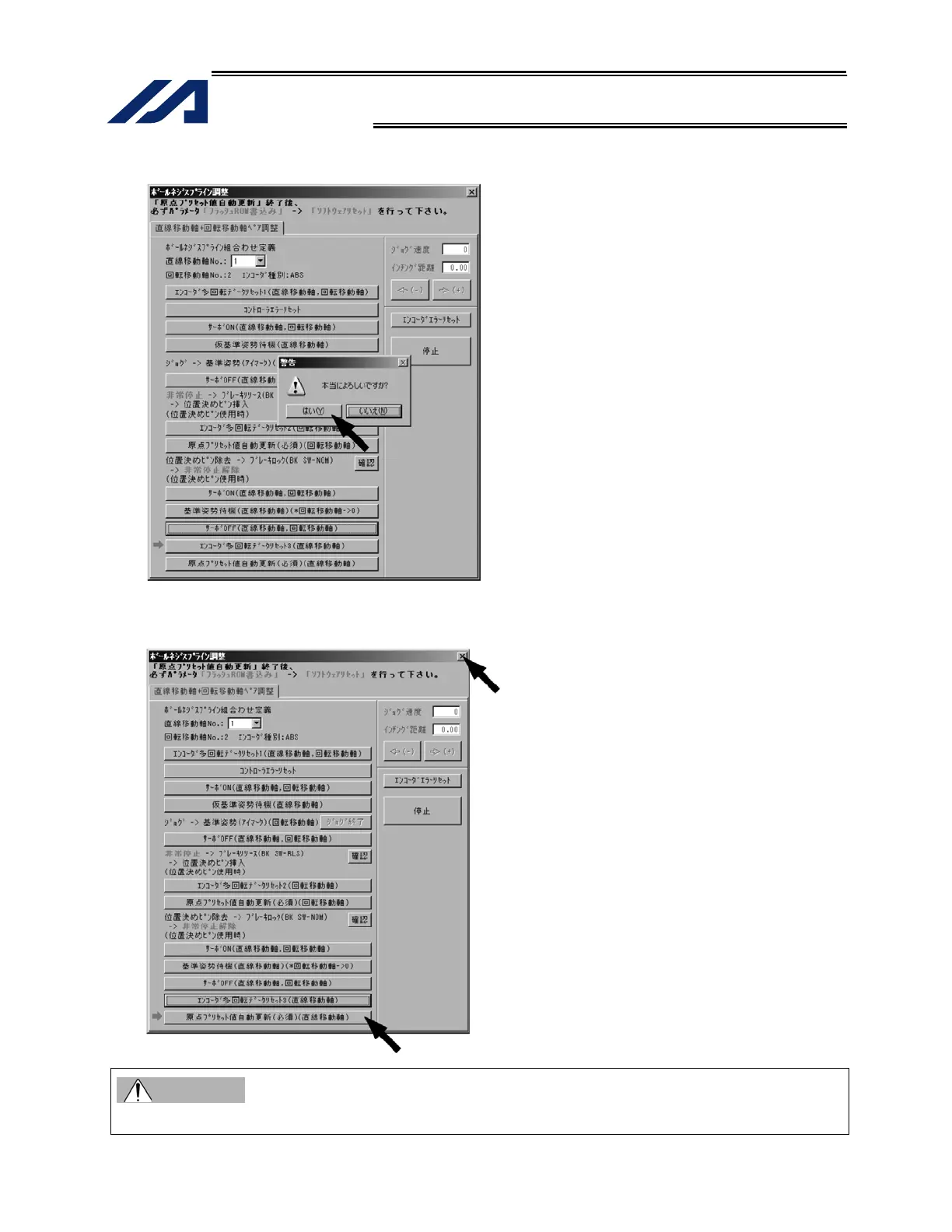

When the dialog box appears, click the [Yes (Y)] button.
(27)
Click the [Automatically Refresh Home Preset Value (Required) (Linear Movement Axis)] button, and
then click “X” in the top righ
t-hand corner
of the windo
w to close the window.
Warning
Take note that not following the work procedure correctly may result in position displa
cement.
130
132
Table of Contents
