INTELLIGENT ACTUATOR
Part 1 Installation
With the P type, use only the signals shown in the shaded fields of the table for connection with the safety
switches.
Exercise caution that opening the specified pins or wiring them differently may compromise the safety
actions of the controller.
The RDYOUT contacts will close only when the controller has started properly. By connecting these
contacts in series with similar contacts of other equipment, the soundness of the entire system can be
checked easily.

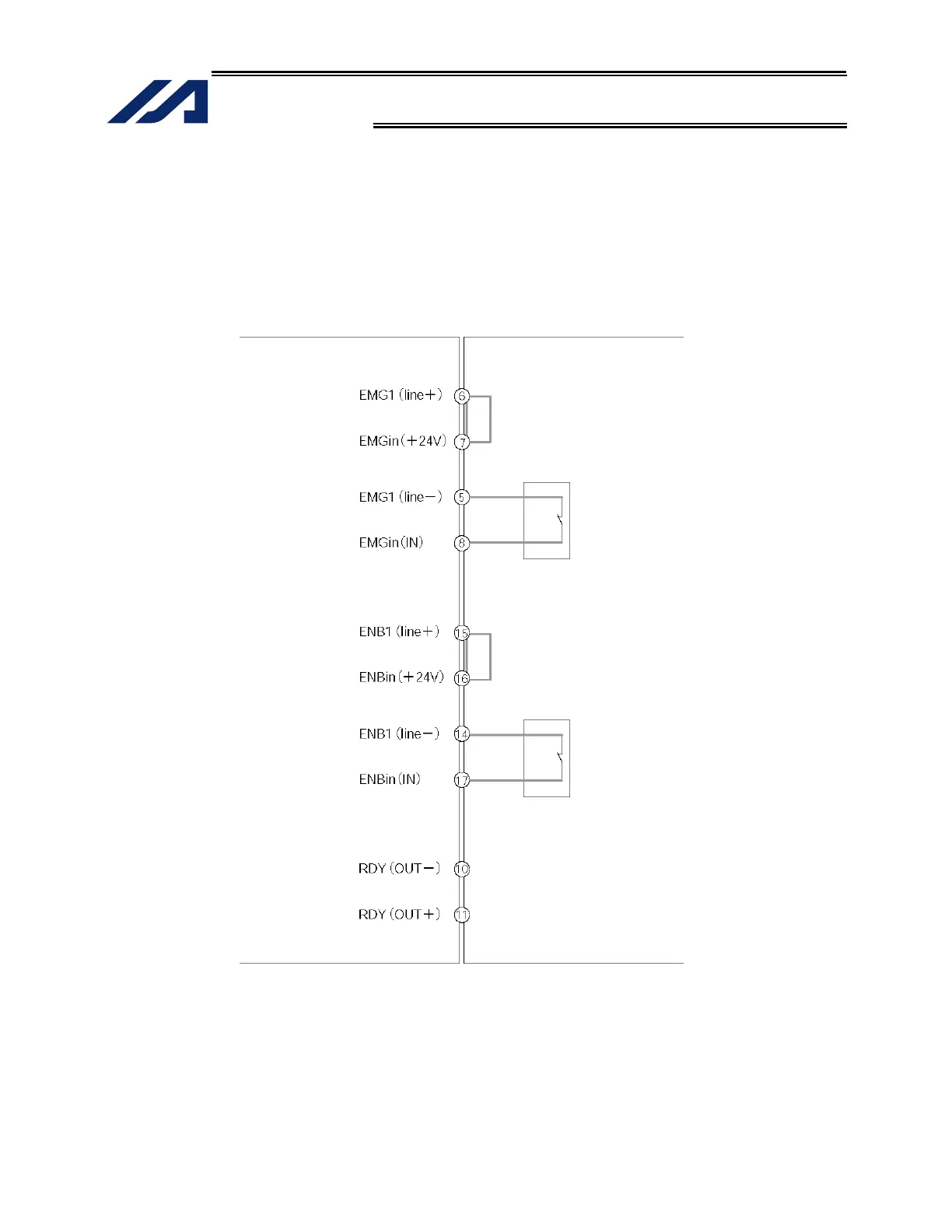

P type X-SEL controller External emergency-stop circuit
Emergency-stop switch
Enable switch
