224 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

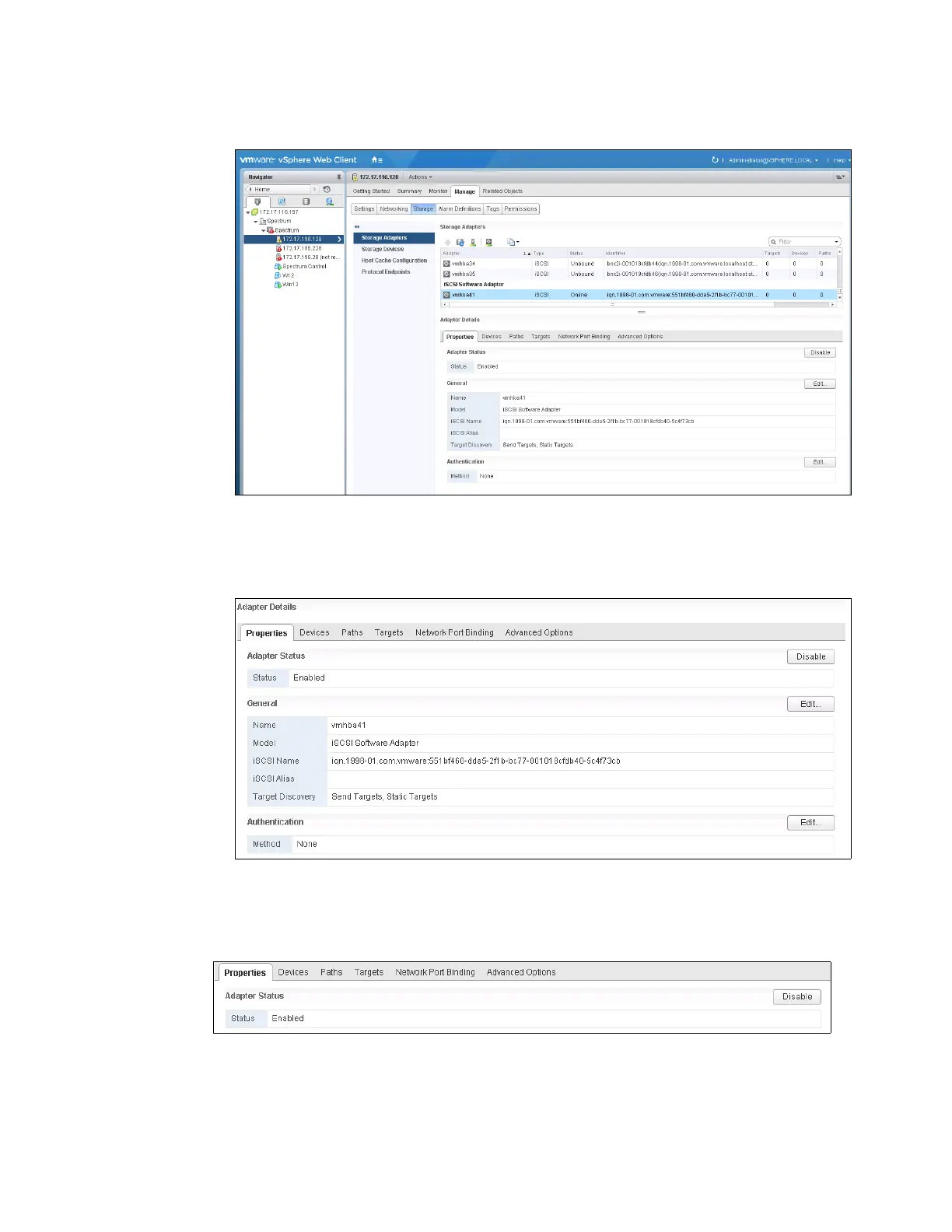

13.A new iSCSI adapter is added to the Storage Adapters window. See Figure 5-29.

Figure 5-29 VMware: New iSCSI Software Adapter

14.Select Storage Adapters and scroll to the iSCSI Software Adapter (Figure 5-30).

Highlight it and you see the Adapter Details in the lower part of the window.

Figure 5-30 VMware: iSCSI Software Adapter

15.The iSCSI Software Adapter Properties window opens. Figure 5-31 shows that the initiator

is enabled by default. To change this setting, click Disable.

Figure 5-31 VMware: iSCSI Software Adapter properties
