Chapter 6. Volume configuration 307

Generally, keep mirrored volumes on a separate set of physical disks (Pools). Leave the

I/O group option at its default setting of Automatic (see Figure 6-17).

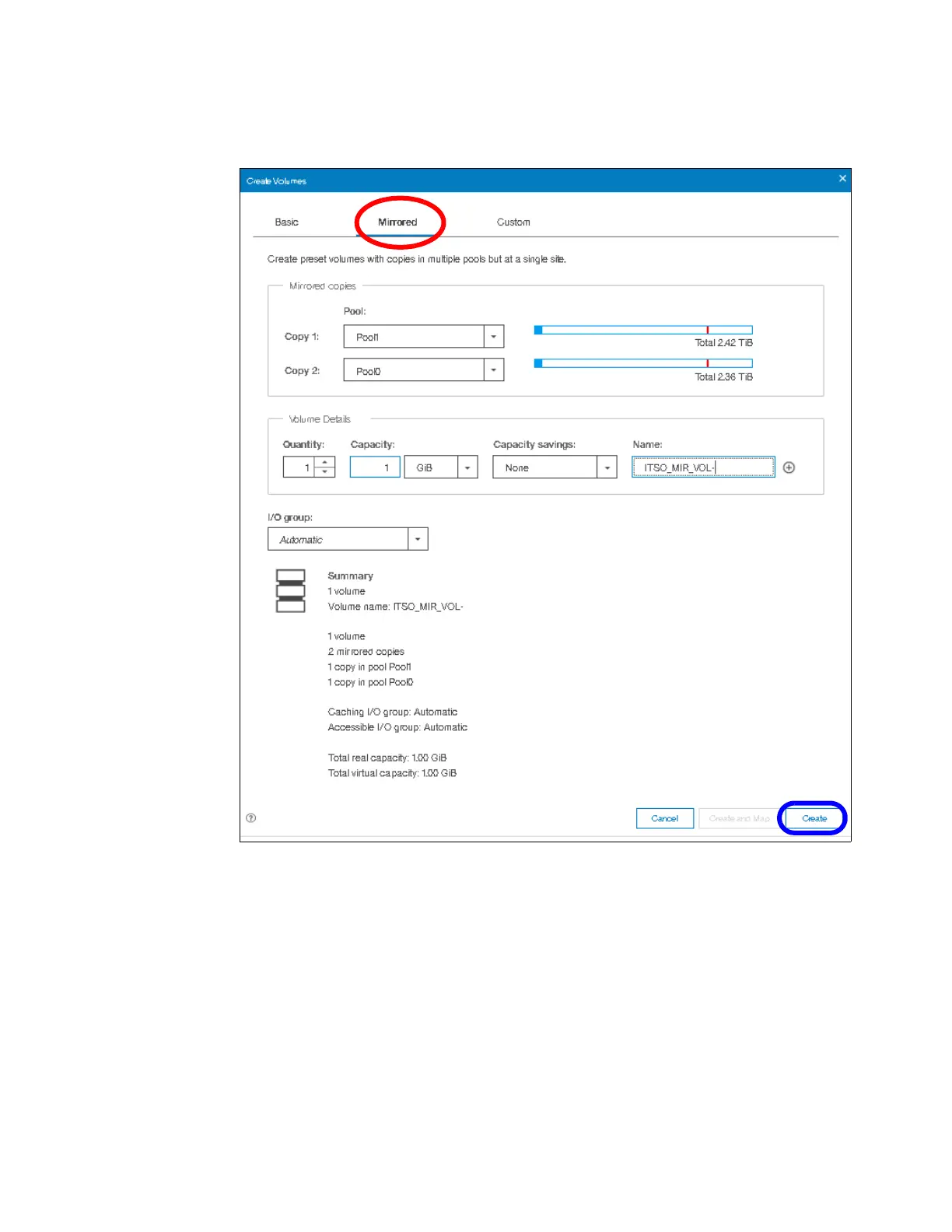

Figure 6-17 Mirrored Volume creation

2. Click Create (or Create and Map to Host)
