330 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

4. Click Map Volumes. A window indicating task of volume mapping completed will be

shown as in Figure 6-47.

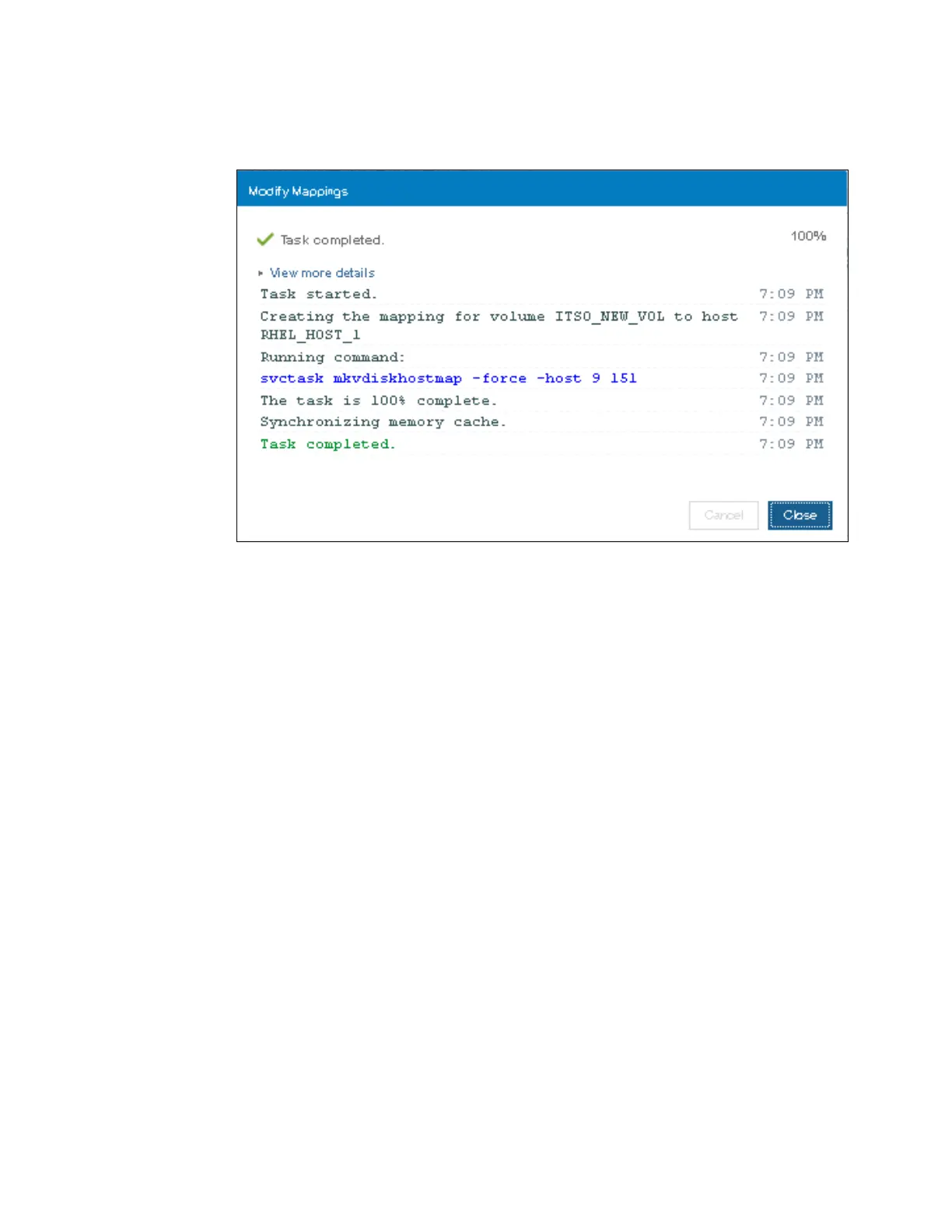

Figure 6-47 Volume mapping task completed

5. After the task completes, the wizard returns to the Volumes window.
