454 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

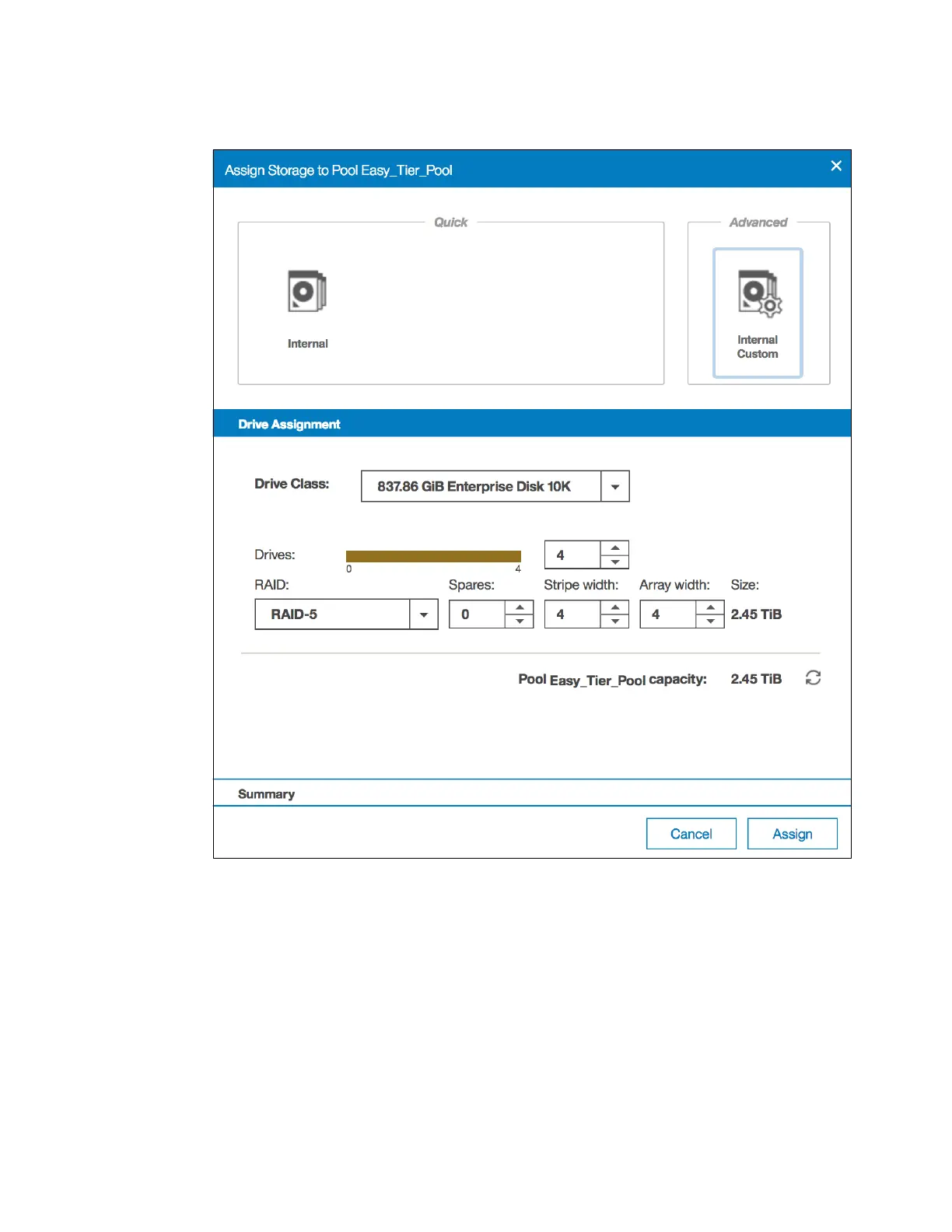

7. Figure 9-13 shows the Advanced Internal Custom panel.
Figure 9-13 Add Storage - Advanced Internal Custom panel
The Quick Internal panel provides a recommended configuration that is based on the
number and type of installed drives. You can use the Advanced Internal Custom panel to
configure the specific drive types, Redundant Array of Independent Disks (RAID) levels,
spares, stripe width, and array width.
In the following steps the Advanced Internal Custom option is used to create a
single-tiered storage pool and then a multi-tiered storage pool by including another drive
class to the single-tiered one. Each drive class needs to be included separately.
