Chapter 9. Advanced features for storage efficiency 453

6. The Assign Storage to Pool panel offers two options to configure the storage into the pool:

Quick Internal or Advanced Internal Custom. Figure 9-12 shows the Quick Internal panel.

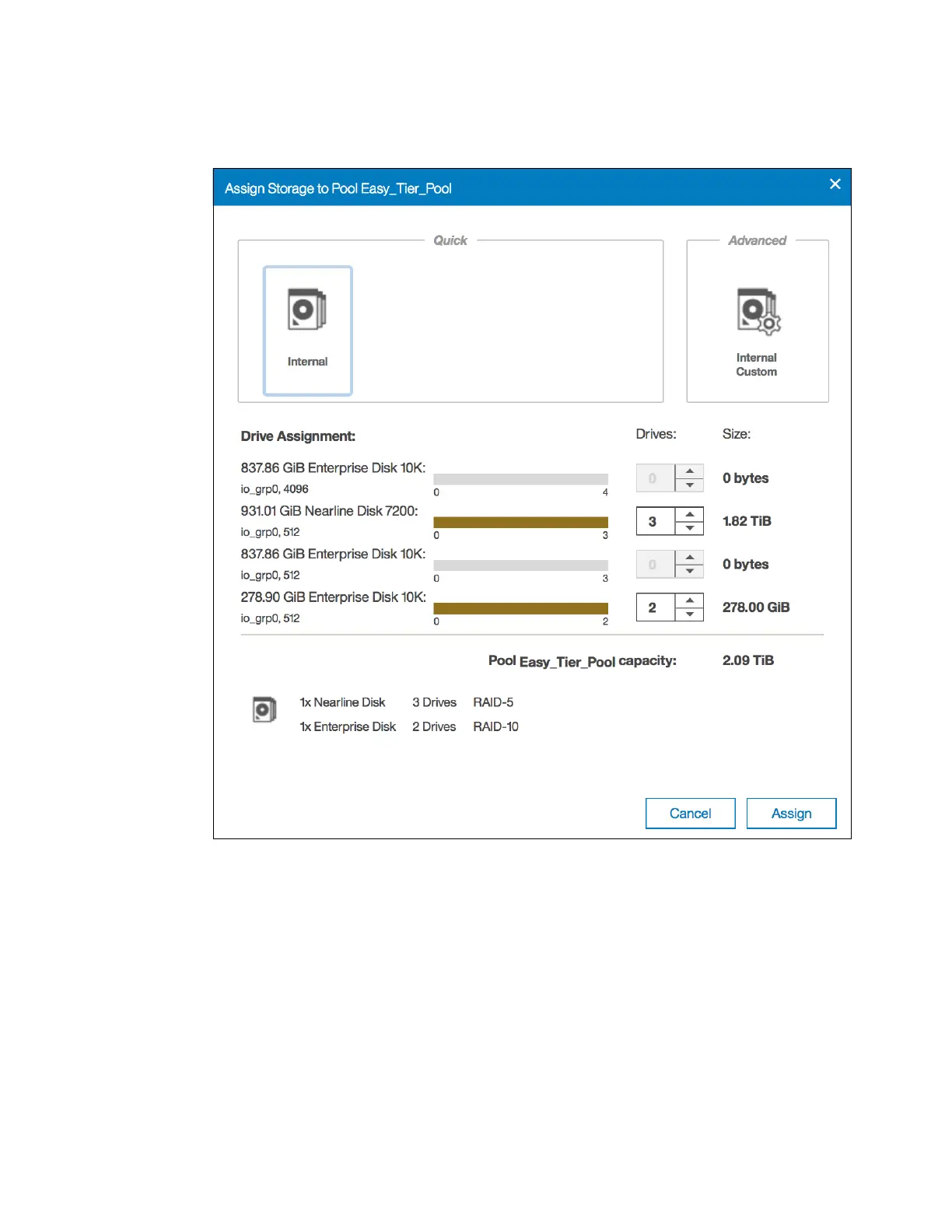

Figure 9-12 Add Storage - Quick Internal panel
