452 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

5. To add storage to a pool you can either select the pool and click Add Storage from the

Actions menu or right-clicking the pool, as shown in Figure 9-11.

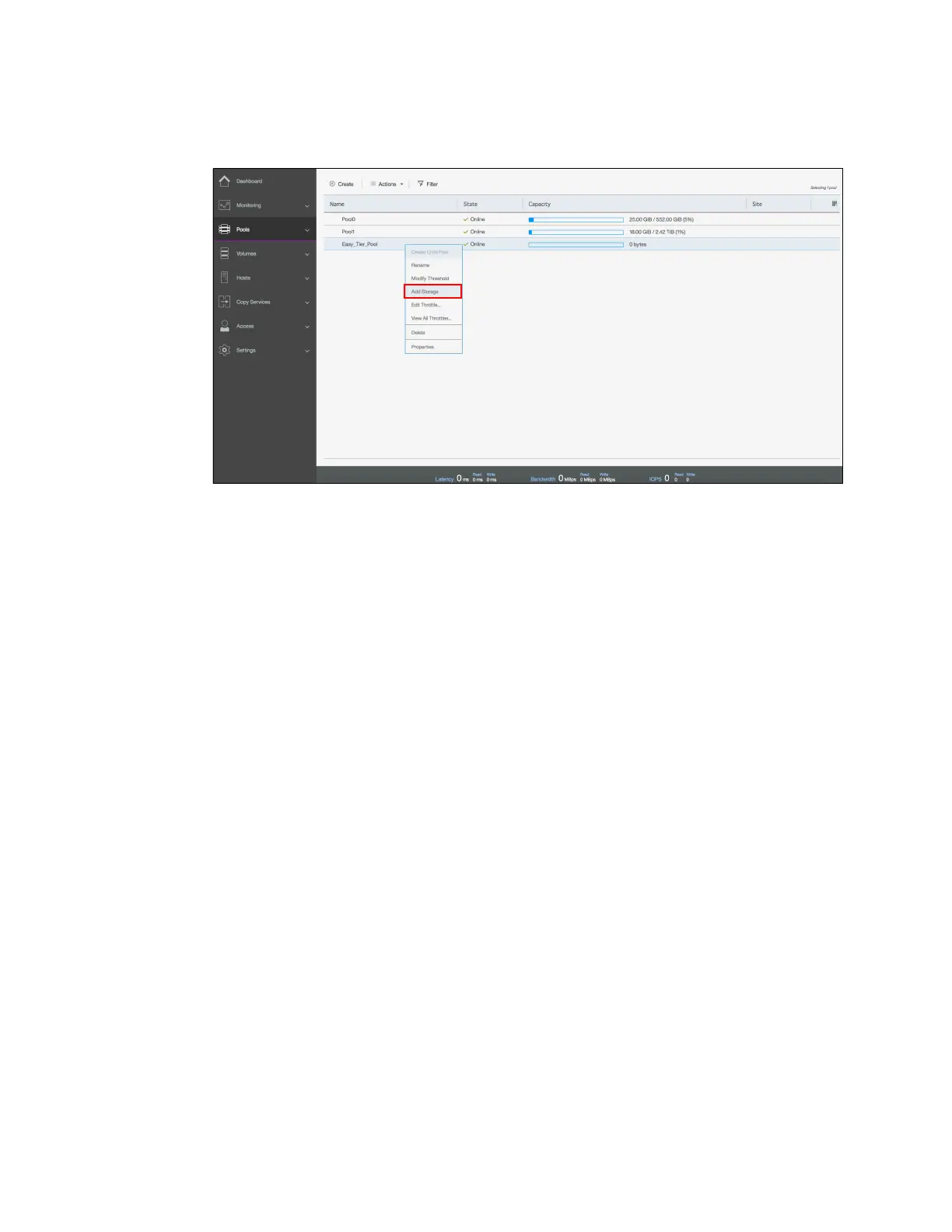

Figure 9-11 Add Storage to a pool
