Chapter 9. Advanced features for storage efficiency 451

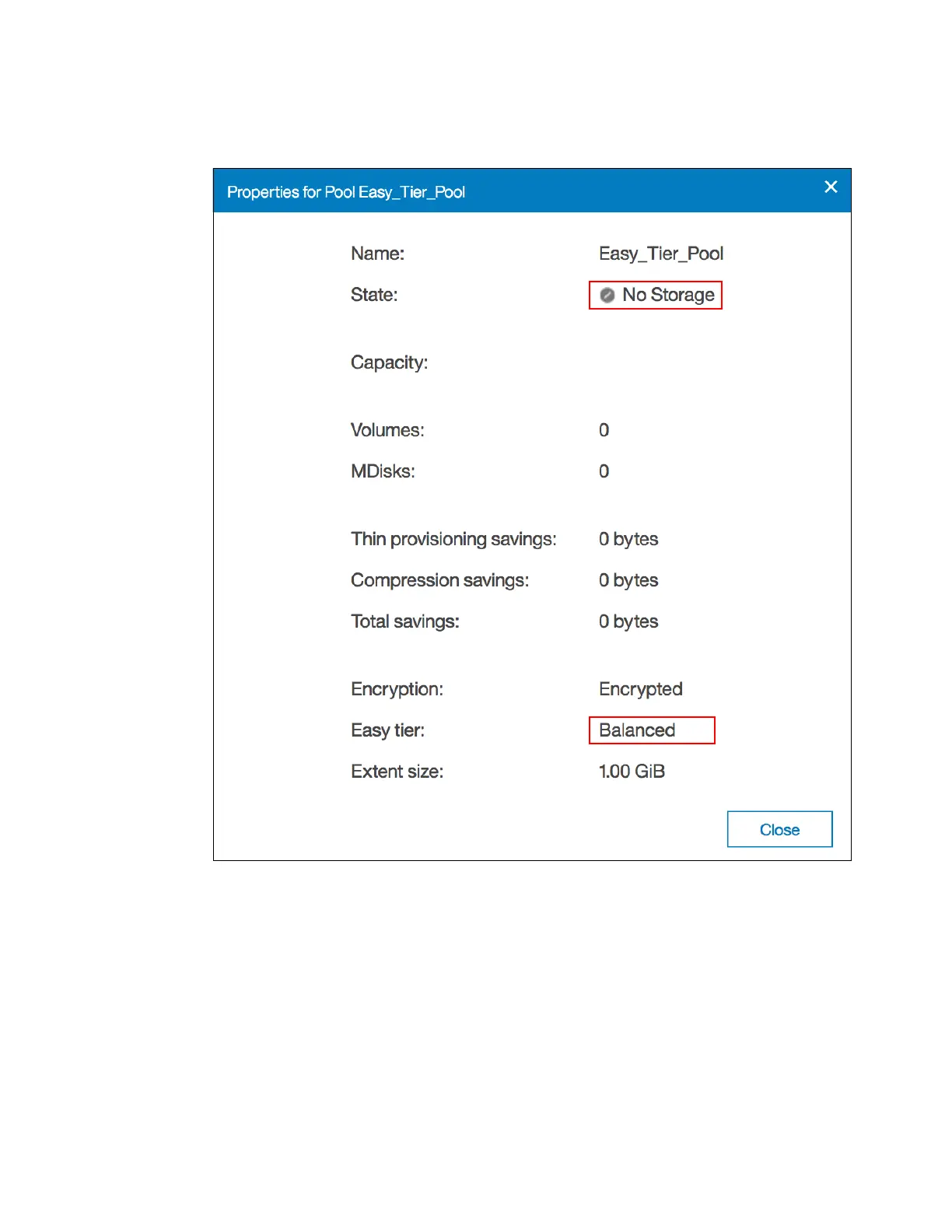

No storage is assigned to the pool at the time of its creation and the Easy Tier default

status is set to Balanced as shown in Figure 9-10.

Figure 9-10 Pool properties panel
