Chapter 12. RAS, monitoring, and troubleshooting 671

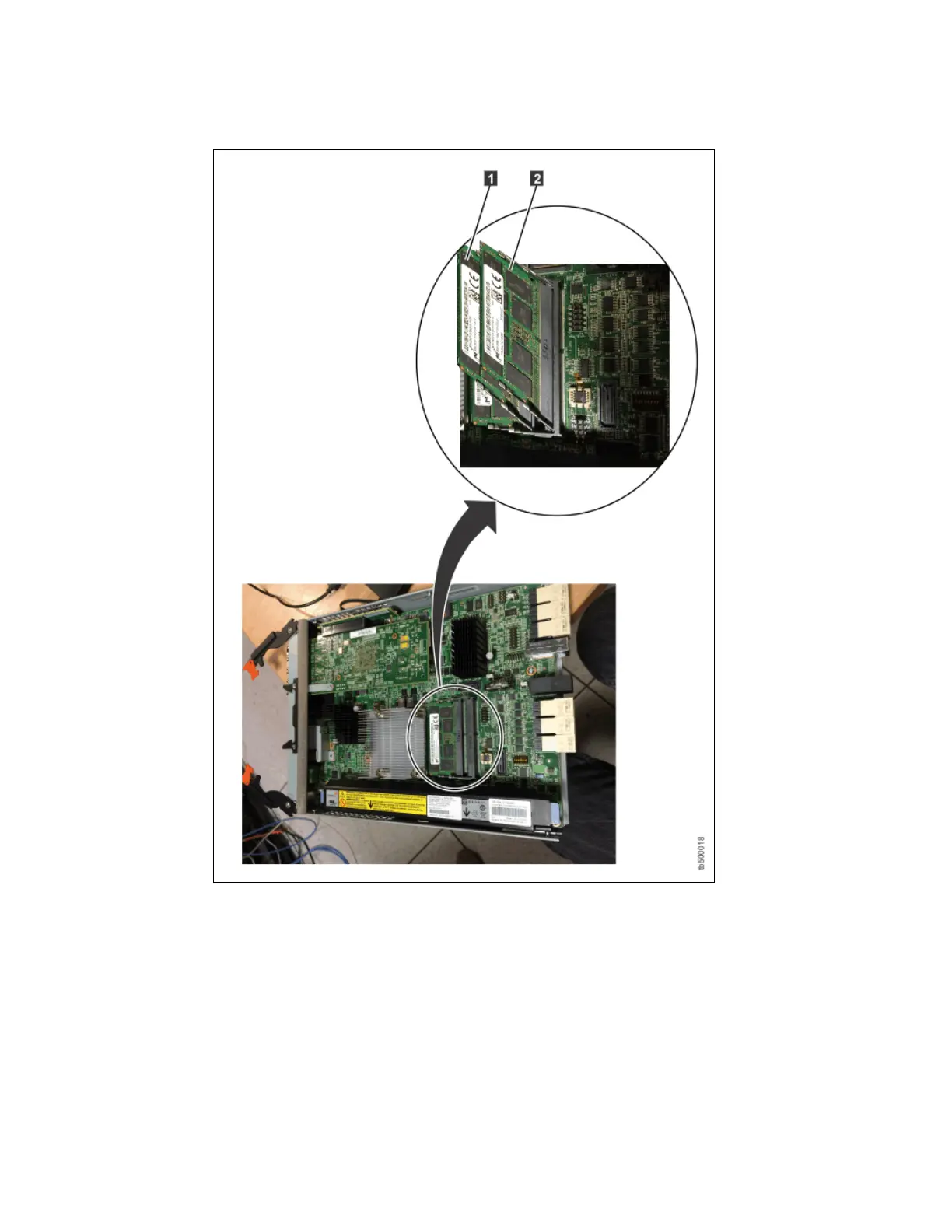

Figure 12-13 shows the location of the memory modules.

Figure 12-13 Location of memory modules

Slot 1 is next to the CPU.

Slot 2 is next to the battery area
