IBM Storwize V5010

738 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
Powering off a node canister
To power off a canister by using the GUI, complete the following steps:
1. Browse to Monitoring → System and rotate the enclosure to the rear view, as shown in
Figure 12-111.

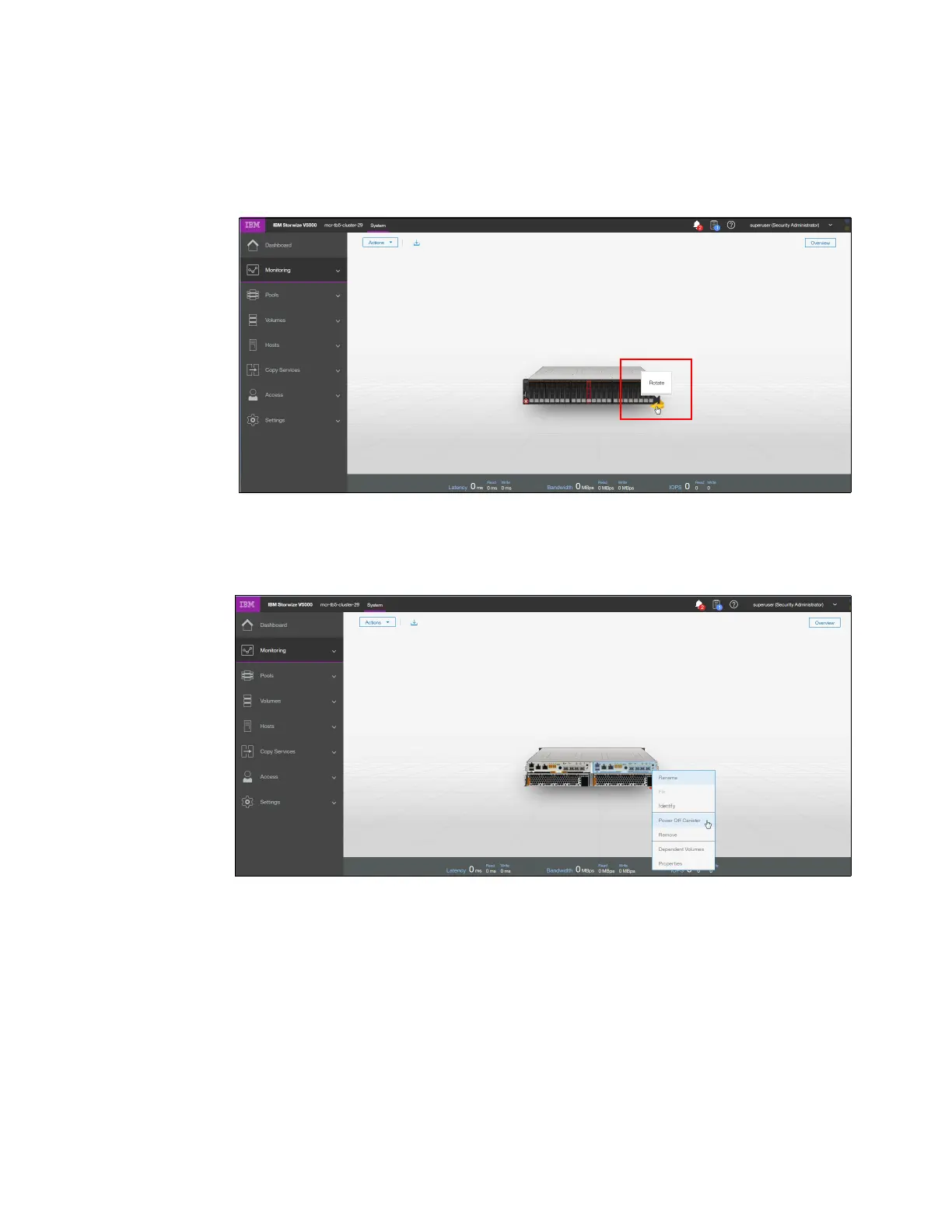

Figure 12-111 Rotating the system image
2. Right-click the required canister and select Power Off Canister, as shown in
Figure 12-112.
Figure 12-112 Powering off the canister
