IBM Storwize V5010 User Manual

Appendix A. CLI setup and SAN Boot 811

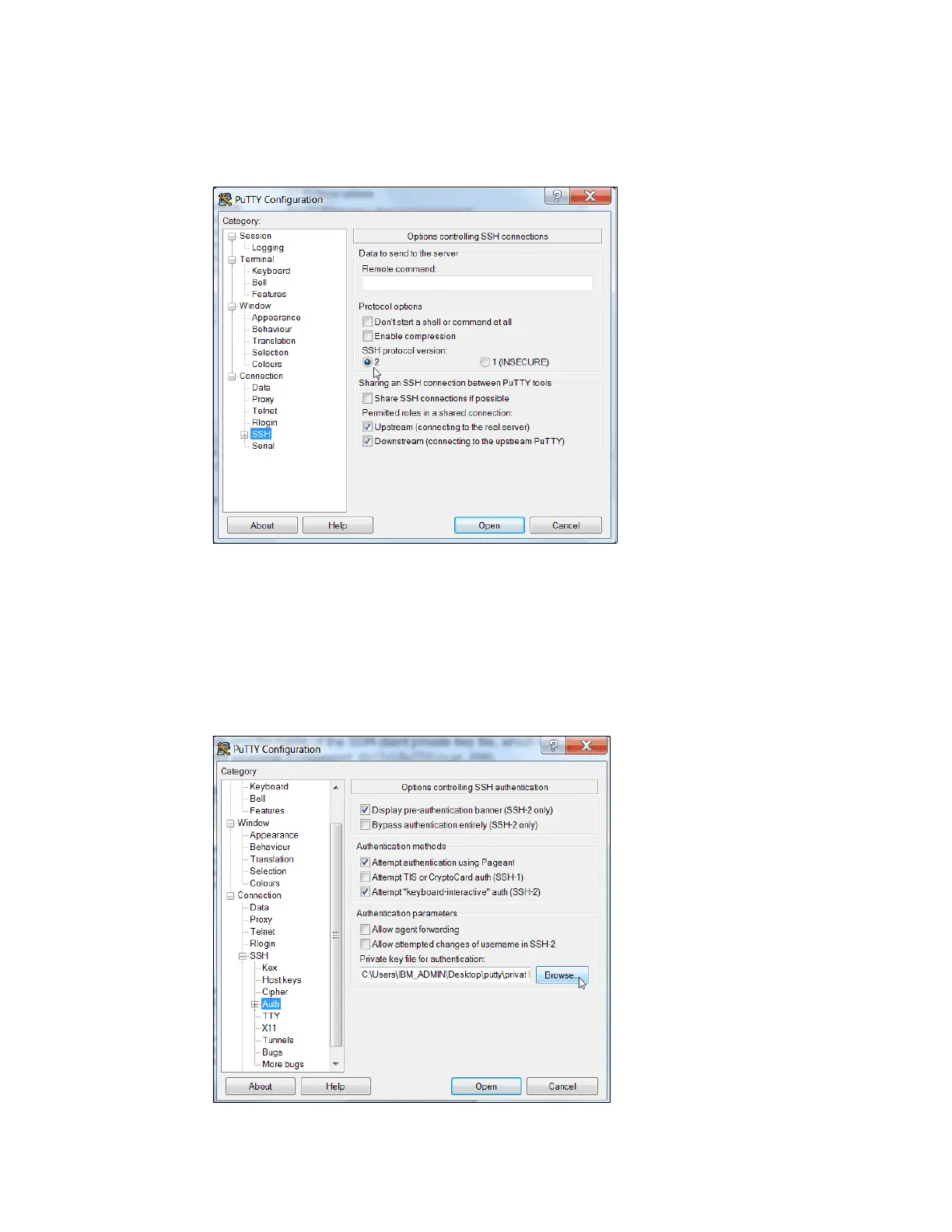

2. In the Category pane, on the left side of the PuTTY Configuration window (Figure A-14),
click Connection → SSH to open the PuTTY Configuration window Options controlling
SSH connections view.
Figure A-14 SSH protocol version 2
Under Preferred SSH protocol version, select 2.
3. In the Category pane on the left, click Connection → SSH → Auth, as shown in
Figure A-15. More options are displayed for controlling SSH authentication.
In the Private key file for authentication field, either browse to or type the fully qualified
directory path and file name of the SSH client private key file, which was created
previously (for example, C:\Support Utils\putty\privat.PPK).
Figure A-15 SSH authentication
