AFL-xxx-CX2 Panel PC
Page 88
listed four BIOS configuration options are selected, the IDE configuration options shown in
Section
5.3.2.1 appear.
5.3.2.1 IDE Master, IDE Slave
Use the IDE Master and IDE Slave configuration menu (BIOS Menu 5) to view both
primary and secondary IDE device details and configure the IDE devices connected to the
system.

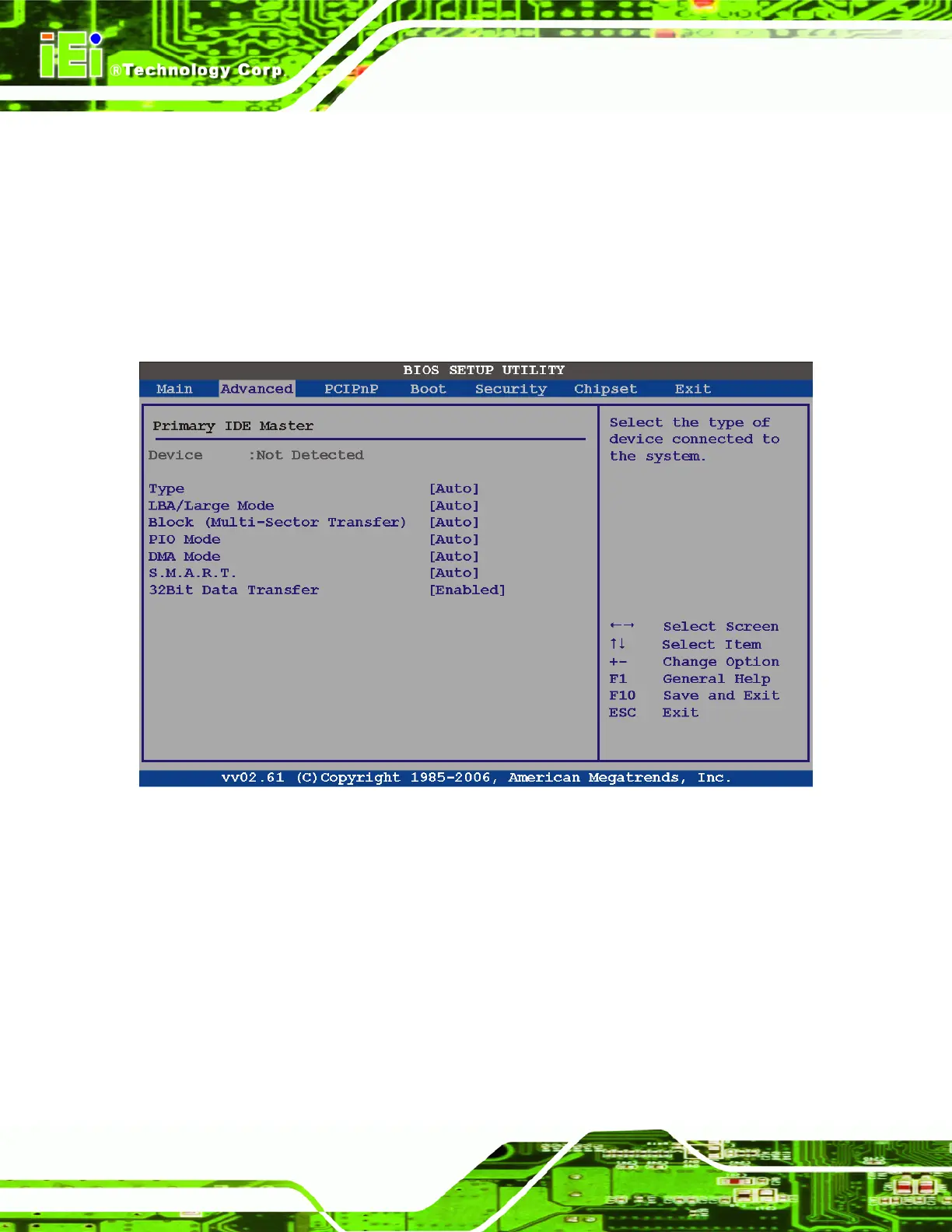

BIOS Menu 5: IDE Master and IDE Slave Configuration
Auto-Detected Drive Parameters
The “grayed-out” items in the left frame are IDE disk drive parameters automatically
detected from the firmware of the selected IDE disk drive. The drive parameters are listed
as follows:
Device: Lists the device type (e.g. hard disk, CD-ROM etc.)
Vendor: Lists the device manufacturer
Size: List the storage capacity of the device.
