AFL-xxx-CX2 Panel PC
Page 28
2.10 Wireless LAN
The IEEE 802.11a/b/g compliant wireless module is pre-installed in the system and
provides wireless connectivity at up to 54 Mb/s. The wireless module is interfaced to the
system chipset through the Mini PCI slot.

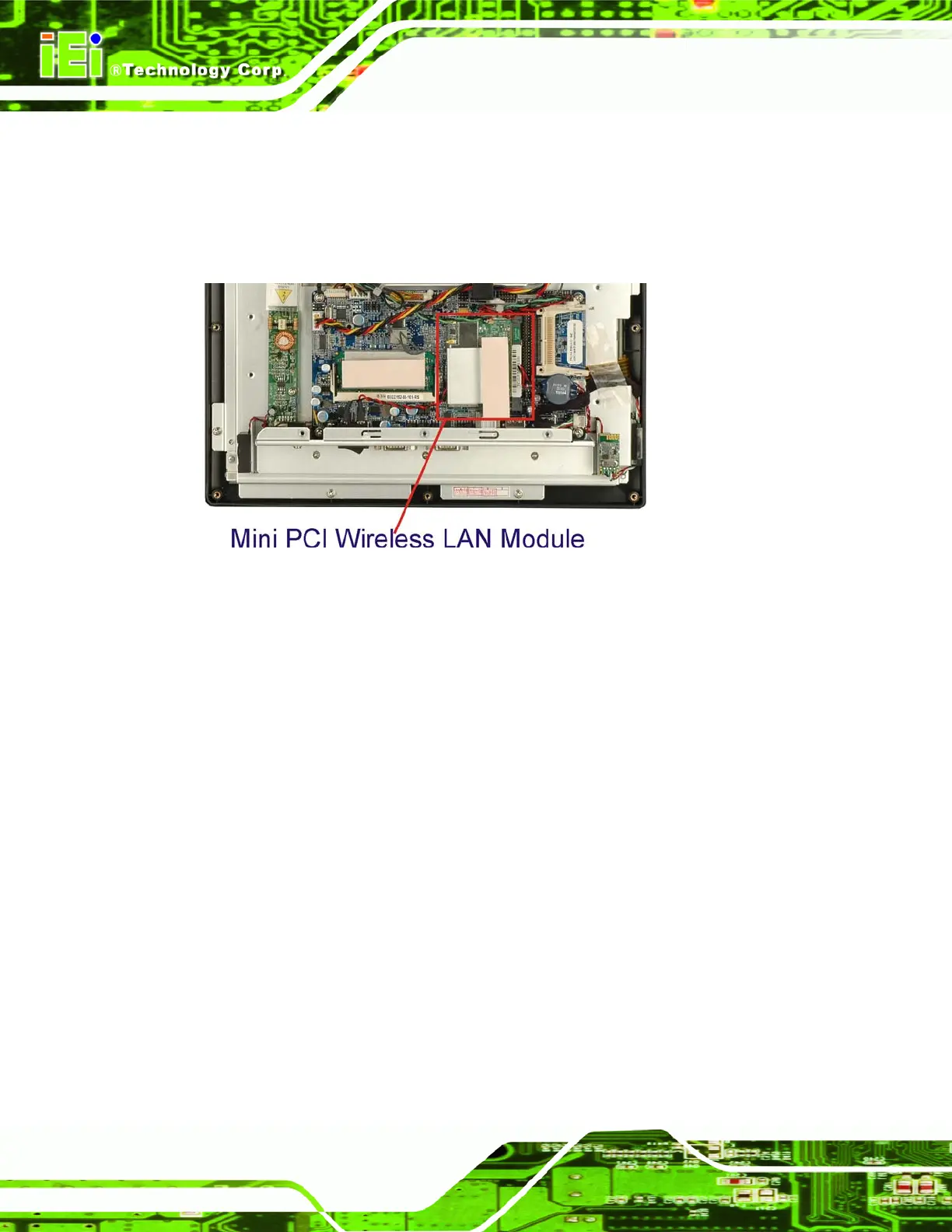

Figure 2-8: Wireless LAN Module
Some of the features of the wireless module are listed below.
Compliant with IEEE 802.11a, 802.11b and 802.11g standards
PCI interface (via the Mini PCI slot)
Ralink RT2561 wireless LAN controller
2.11 Front Panel
The front panel of the AFL-xxx-CX2 consists of an LCD monitor and a touch screen panel.
2.11.1 LCD Screen
The AFL-xxx-CX2 comes with a TFT LCD monitor. The tough construction of the TFT
monitor allows the AFL-xxx-CX2 to withstand the conditions it is likely to be exposed to
during regular use. Some of the specifications of the TFT monitors are shown below:
Pixel pitch of 0.297 mm or less
700:1 contrast ratio or better
300 cd/m
2
or greater
