AFL-xxx-CX2 Panel PC
Page 29
8 msec optical response time or less
0
o
C to 50
o
C operating temperature
2.11.2 Touch Screen
The touch screen panel on the AFL-xxx-CX2 allows complete user interaction without the
need for a keyboard or mouse. Some of the features of the touch panel are listed below.
5-wire analog resistive type
78% transmission
Control chipset built onto the motherboard
-10
o
C to 50
o
C operating temperature
7 V maximum voltage
2.12 Internal Peripheral Device Connectors
The peripheral device connectors listed below are located on the AFLMB-CX2-R10
motherboard.
Figure 2-9 shows the overview of the internal connectors.
1 x Audio connector
1 x Inverter connector
1 x LCD interface connector
1 x LED connector
1 x Power switch connector
1 x Touch screen connector

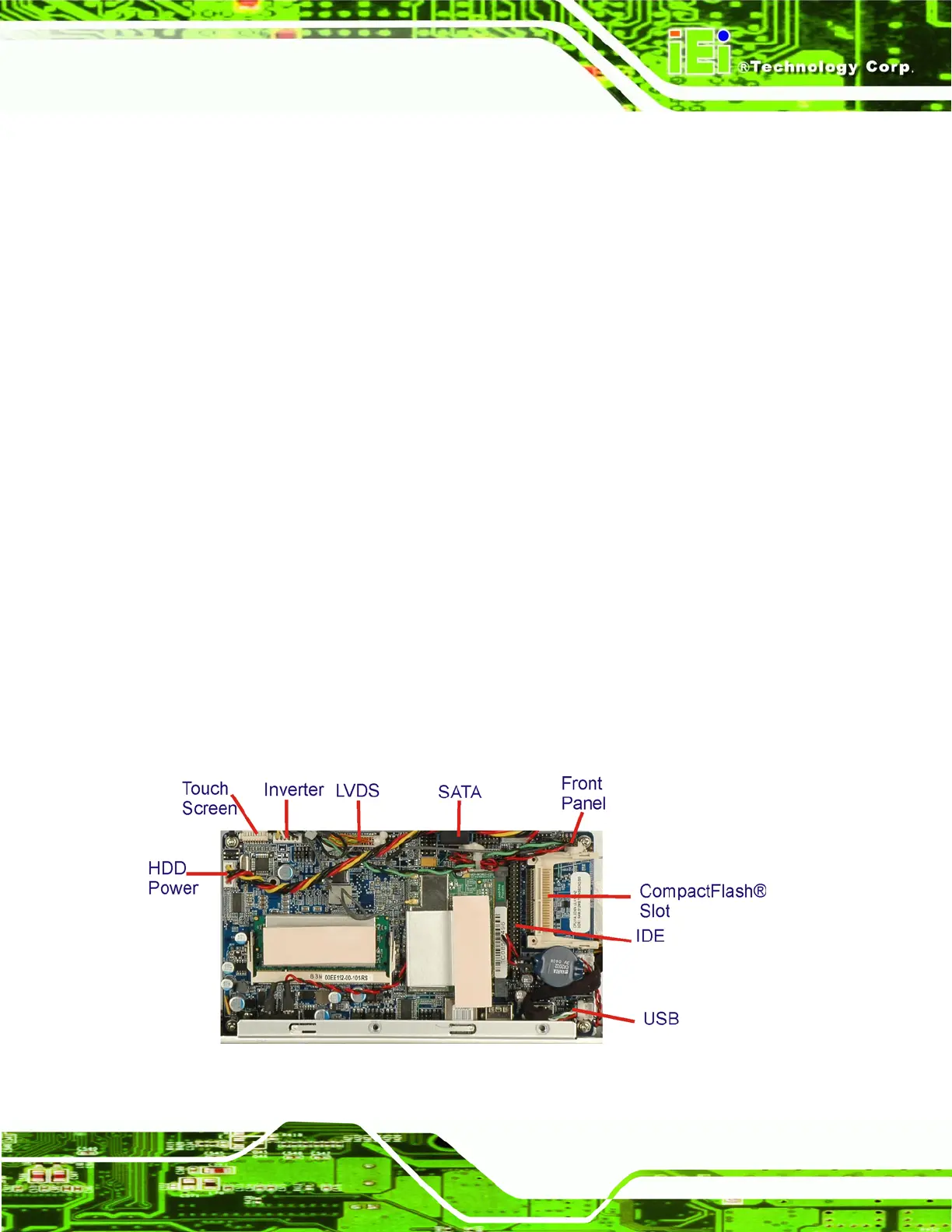

Figure 2-9: AFLMB-CX2-R10 Connector Overview
