AFL-xxx-CX2 Panel PC
Page 24
400 MHz or 533 MHz 128-bit DDR2 SDRAM controller
Supports one un-buffered DDR2 SO-DIMM
Each SO-DIMM has a maximum capacity of 1.0 GB
The DDR2 controller on the processor is interfaced to one SO-DIMM socket on the
AFL-xxx-CX2.

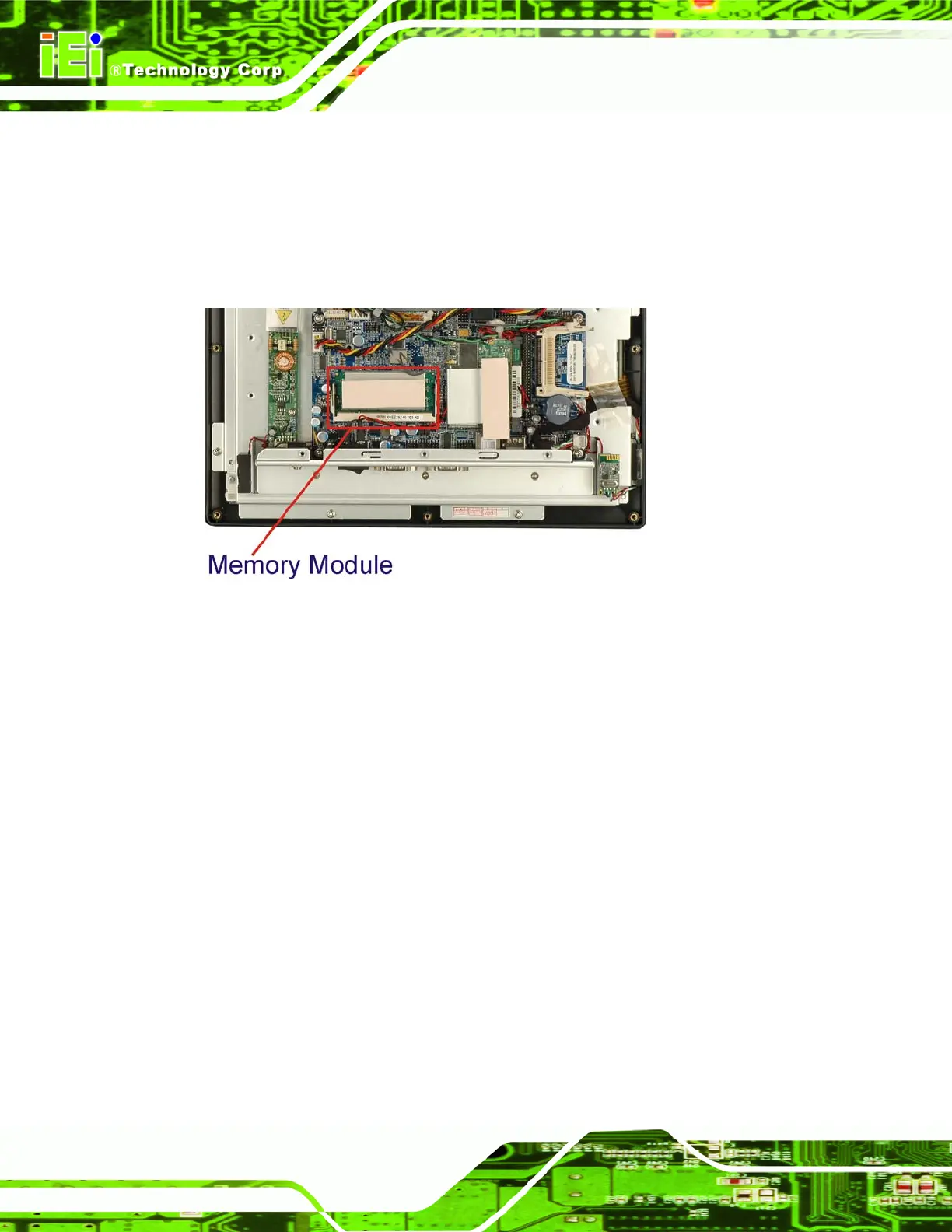

Figure 2-2: Memory Module
2.7 Storage
There following storage options are available:
CompactFlash®
SATA hard drive
2.7.1 CompactFlash
®
The CompactFlash® socket supports standard CompactFlash® Type I and
CompactFlash® Type II cards. The chipset flash interface is multiplexed with an IDE
interface and can be connected to an array of industry standard NAND Flash or NOR
Flash devices. The CompactFlash® slot location is shown below.
