AFL-xxx-CX2 Panel PC
Page 23

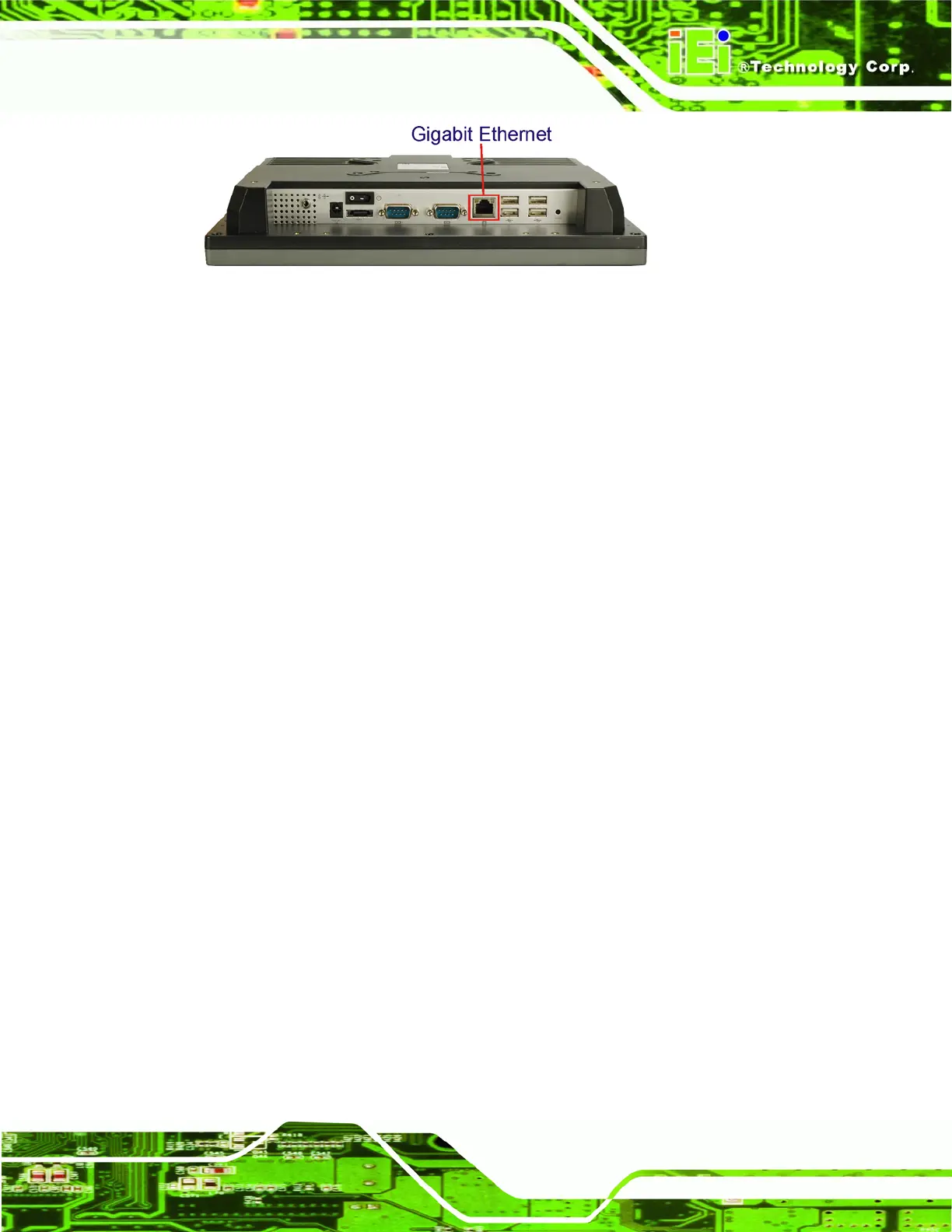

Figure 2-1: Gigabit Ethernet
The Realtek RTL8110SC controller provides 10 Mb/s, 100 Mb/s or 1000 Mb/s Ethernet
connectivity to the AFLMB-CX2-R10. Some of the Gigabit Ethernet controller
specifications are shown below.
Integrated 10/100/1000 transceiver
Auto-Negotiation with Next Page capability
Supports PCI rev.2.3, 32-bit, 33/66 MHz
Supports CLKRUNB and MiniPCI v1.0
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Wake-on-LAN and remote wake-up support
Microsoft® NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload
support
Supports Full Duplex flow control (IEEE 802.3x)
Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Serial EEPROM
3.3 V signaling, 5 V PCI I/O tolerant
Transmit/Receive FIFO (8K/64K) support
Supports power down/link down power saving
Supports PCI Message Signaled Interrupt (MSI)
2.6 Memory
The VIA CX700M in the AFL-xxx-CX2 contains an internal DDR2 controller. The DDR2
controller has the following features:
Low-latency, high-bandwidth
