AFL-xxx-CX2 Panel PC
Page 64

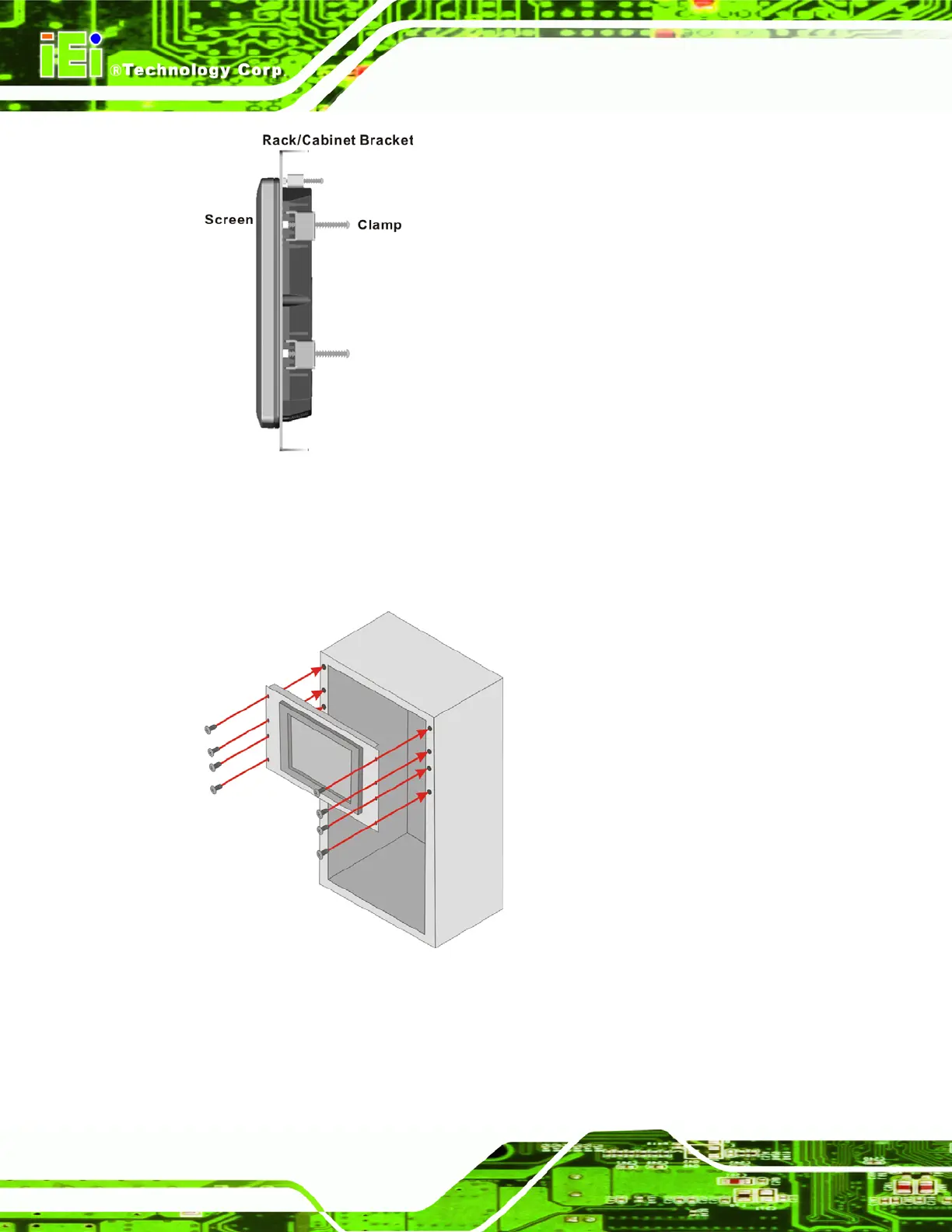

Figure 3-21: Secure the Rack/Cabinet Bracket
Step 4:
Slide the flat pan
el PC with the attached rack/
cabinet bracket into a rack or
cabinet (
Figure 3-22
).
Figure 3-22: Install into a Rack/Cabinet
81
83
