AFL-xxx-CX2 Panel PC
Page 148
Step 18:
The installation pro
cess continues with
out user prompts. When
complete the

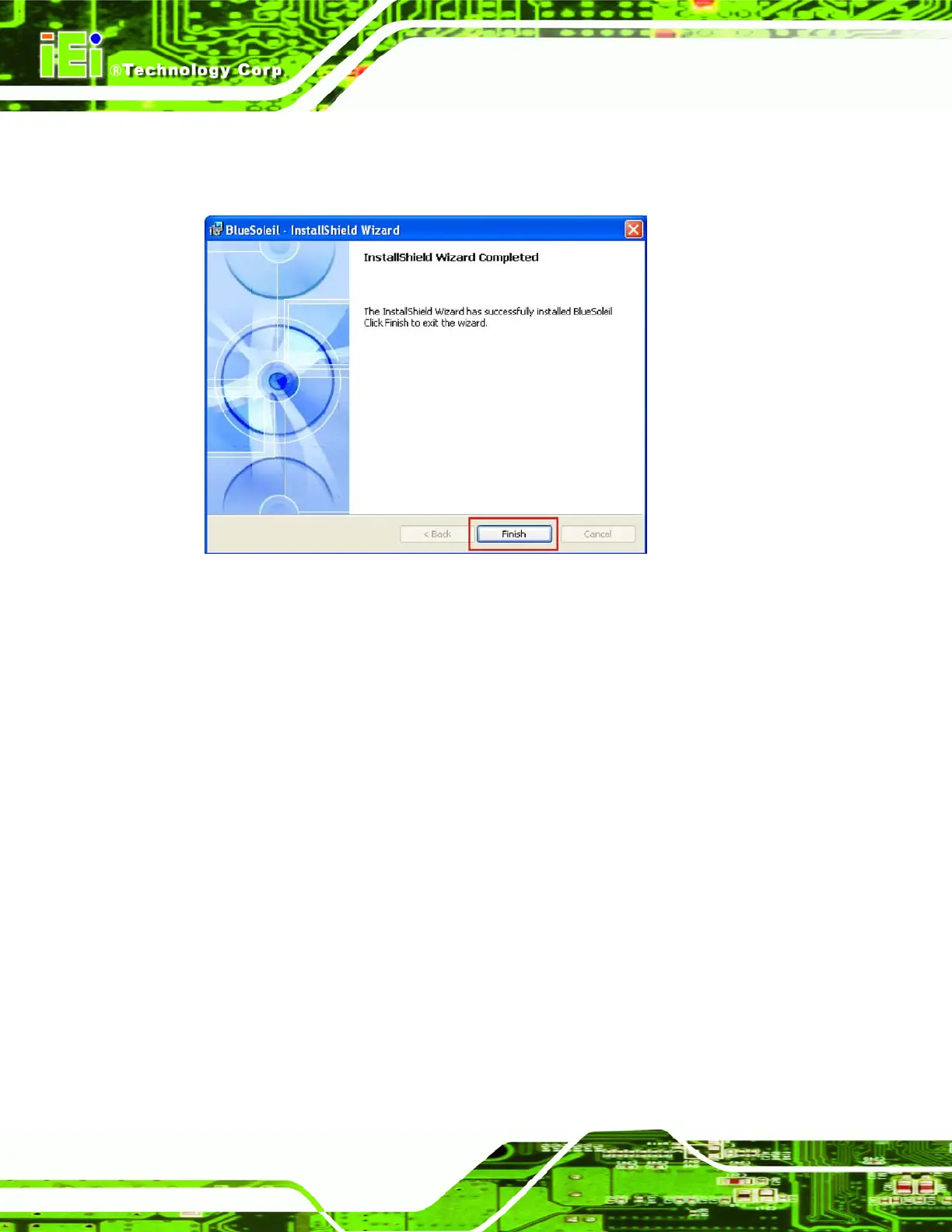

window below appears (
Figure 6-40).
Figure 6-40: USB 2.0 Driver Installed
Step 19:
Click finish to close the InstallShield wizard (
Figure 6-40).
