AFL-xxx-CX2 Panel PC
Page 61

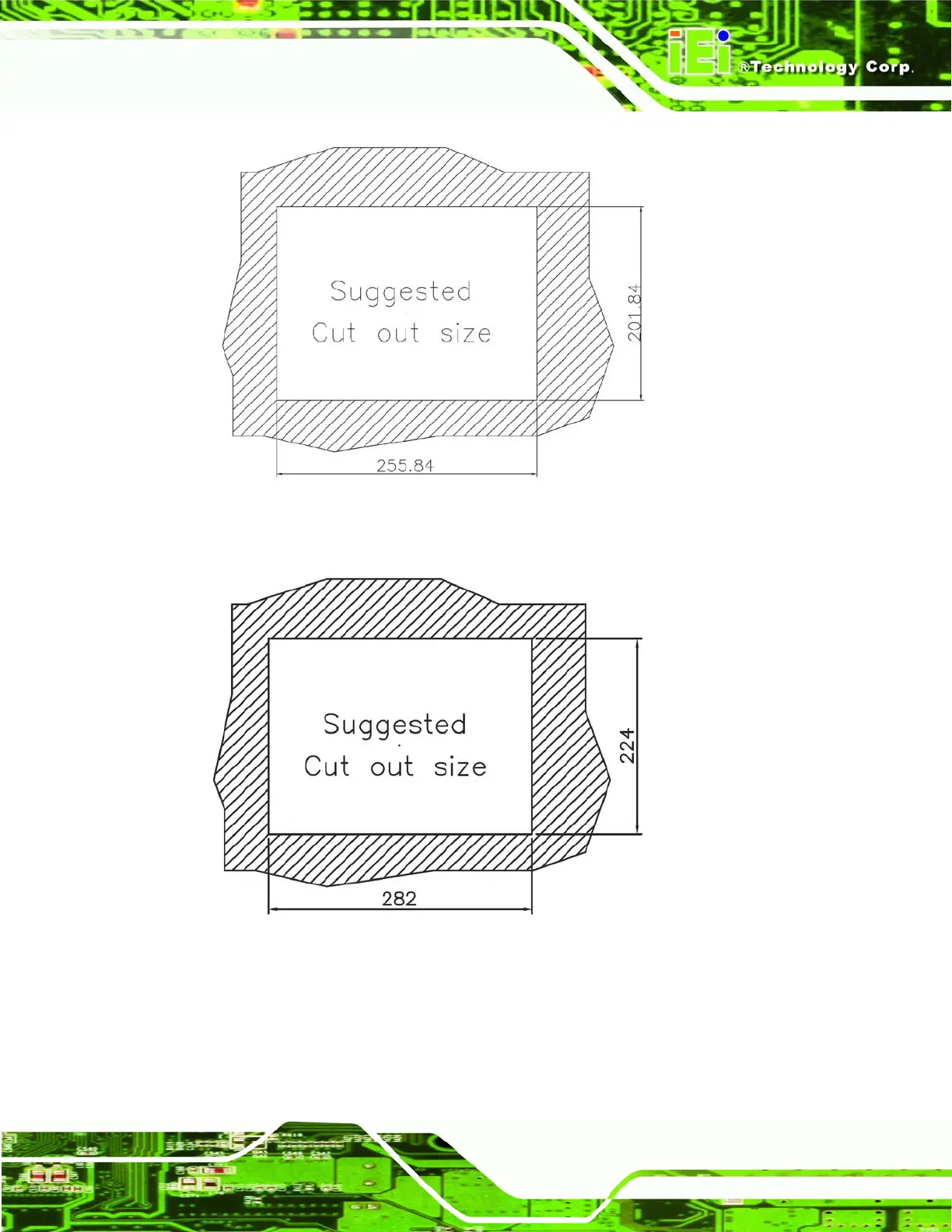

Figure 3-17: AFL-10A-CX2 Panel Ope
ning
Figure 3-18: AFL-12B-CX2 Panel Ope
ning
Step 3:
Slide the flat p
anel PC through the hole until the aluminum frame is flush ag
ainst
the panel.
78
80
