AFL-xxx-CX2 Panel PC
Page 93
5.3.3 Super IO Configuration
Use the Super IO Configuration menu (BIOS Menu 6) to set or change the
configurations for the FDD controllers, parallel ports and serial ports.

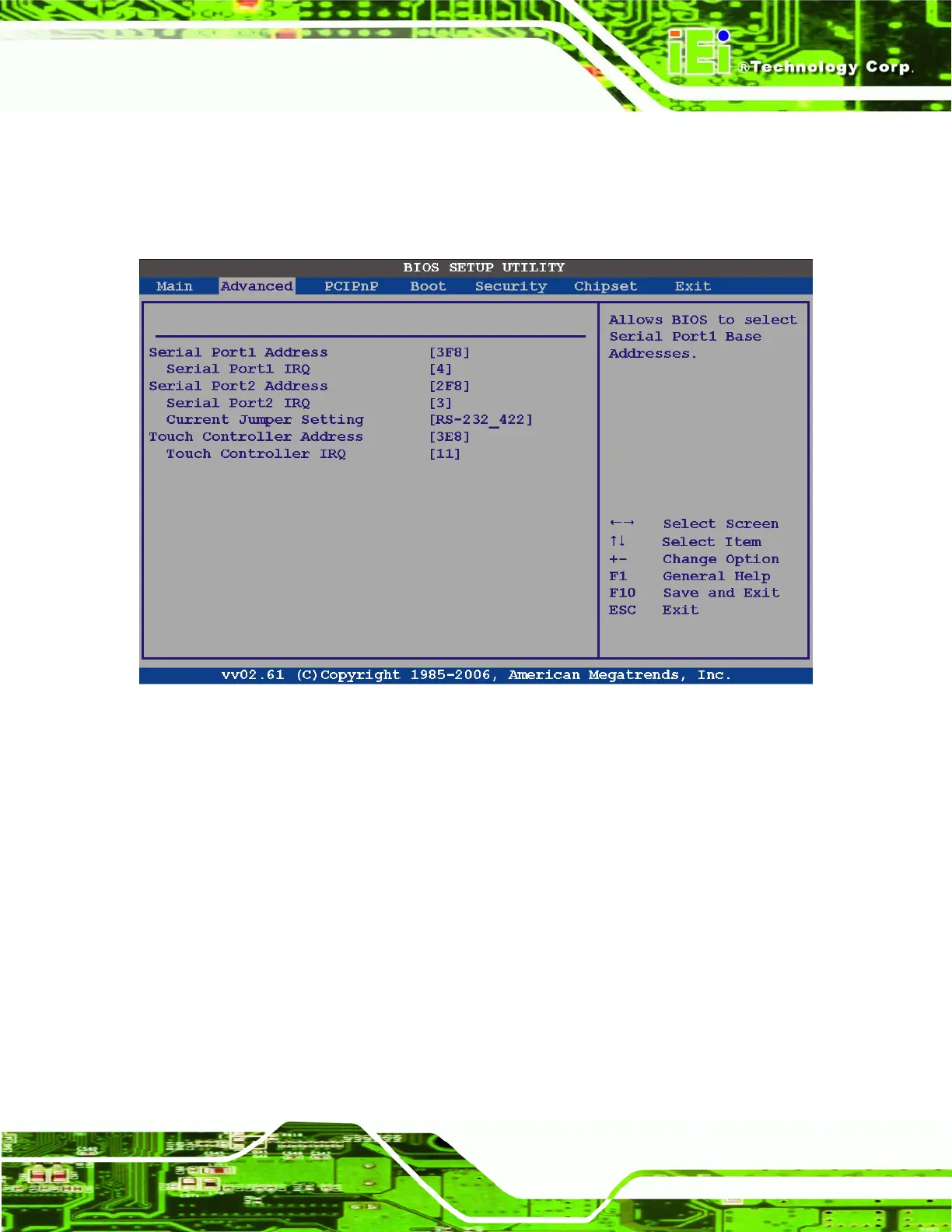

BIOS Menu 6: Super IO Configuration
Serial Port1 Address [3F8]
Use the Serial Port1 Address option to select the Serial Port 1 base address.
Disabled
No base address is assigned to Serial Port 1
3F8 DEFAULT
Serial Port 1 I/O port address is 3F8
2F8
Serial Port 1 I/O port address is 2F8
2E8
Serial Port 1 I/O port address is 2E8
Serial Port1 IRQ [4]
Use the Serial Port1 IRQ option to select the interrupt address for serial port 1.
