AFL-xxx-CX2 Panel PC
Page 18
1.5.3 AFL-10A-CX2 Dimensions
The dimensions of the AFL-10A-CX2 a
re shown in
Figure 1-8
below.

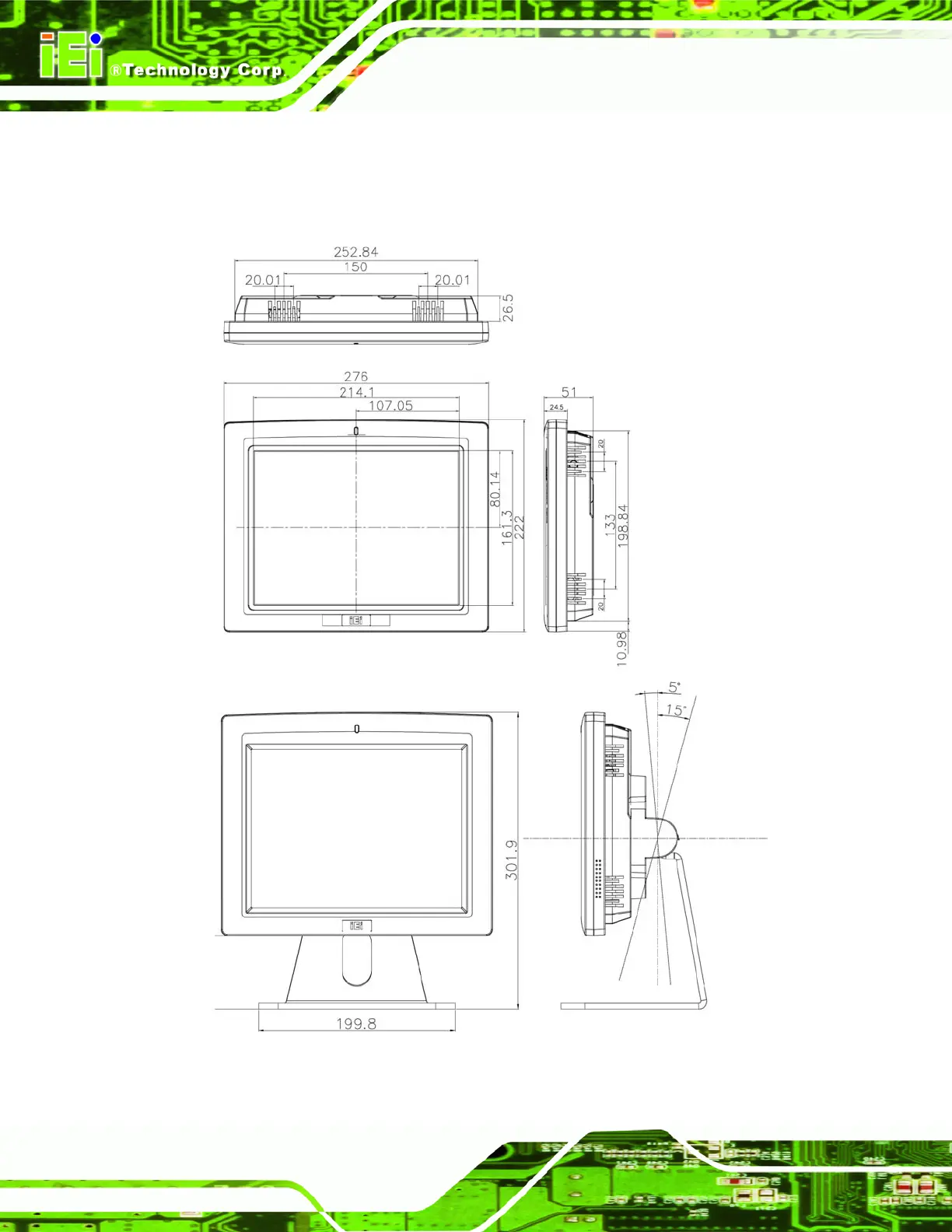

Figure 1-8: AFL-10A-CX2 Dimensions (units in mm)
35
37
