IEI Technology AFL-xxx-CX2 User Manual

AFL-xxx-CX2 Panel PC
Page 6
1.2.3 Rear Panel
The rear panel provides access to retention screw holes that support the wall mounting.
Refer to
Figure 1-3.

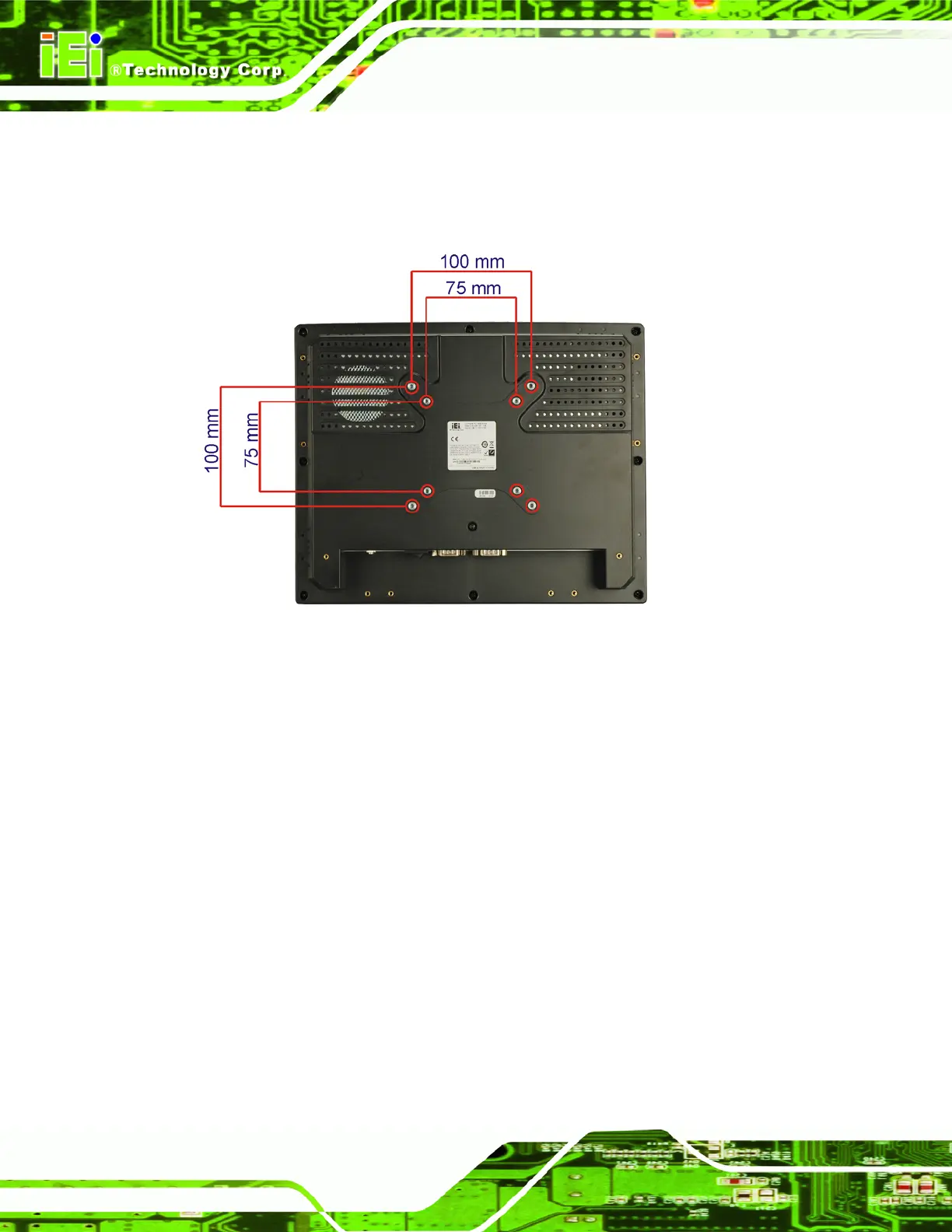

Figure 1-3: Rear View
1.2.4 Bottom Panel
The bottom panel of the AFL-xxx-CX2 has the following I/O interfaces (Figure 1-4):
 1 x Audio out
 1 x External SATA connector
 4 x USB 2.0 connectors
 1 x Power connector
 1 x Power switch
 1 x RS-232 serial port
 1 x RS-232/422/485 serial port
 1 x RJ-45 GbE connector
 1 x Reset button
