AFL-xxx-CX2 Panel PC
Page 62
Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of
the chassis, behind the aluminum frame. There are a total of 6 panel mounting
clamps for AFL-xxx-CX2.
Step 5: Tighten the screws that pass through the panel mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the panel (
Figure 3-19).
Step 0:

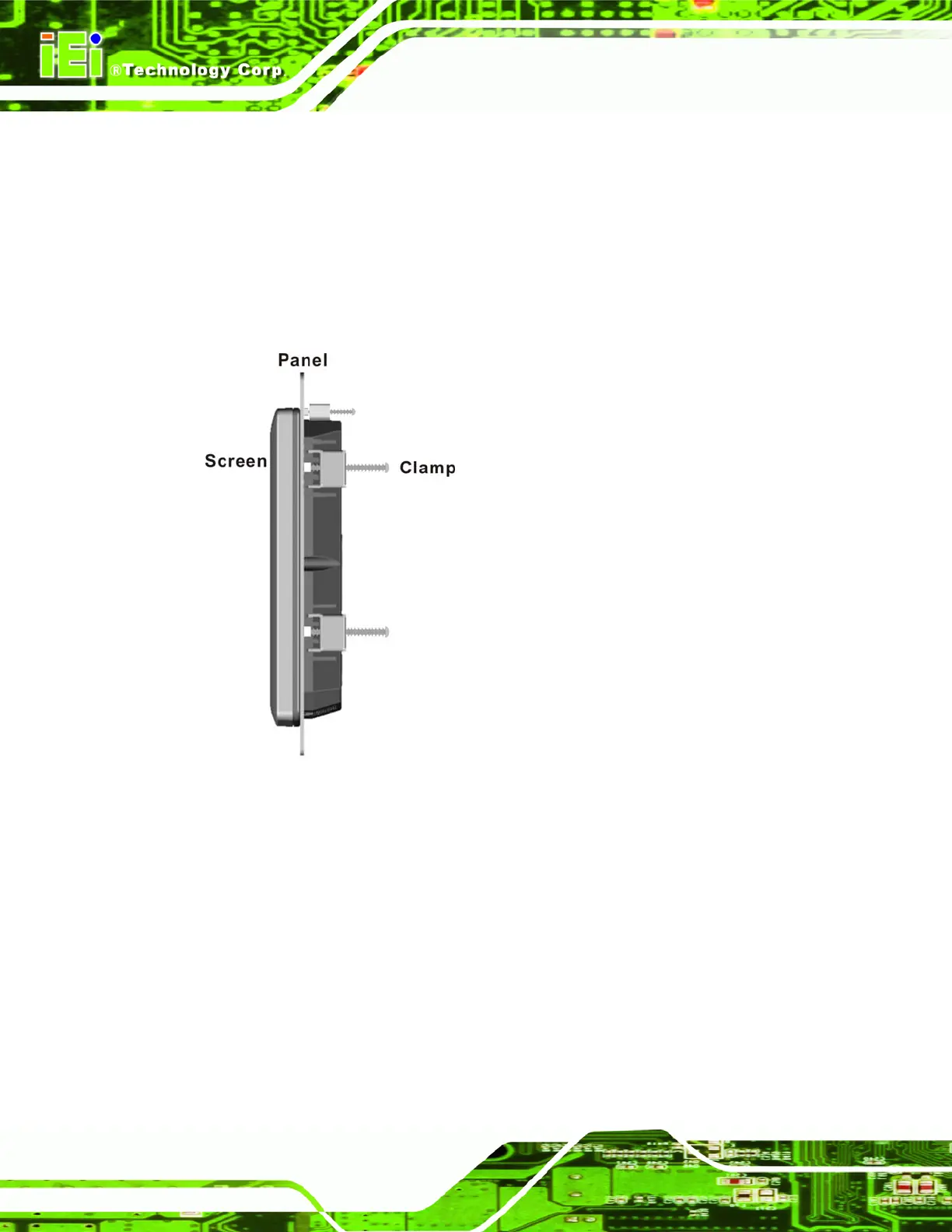

Figure 3-19: Tighten the Panel Mounting Clamp Screws
3.8.4 Cabinet and Rack Installation
The AFL-xxx-CX2 can be installed into a cabinet or rack. The installation procedures are
similar to the panel mounting installation. To do this, please follow the steps below:
