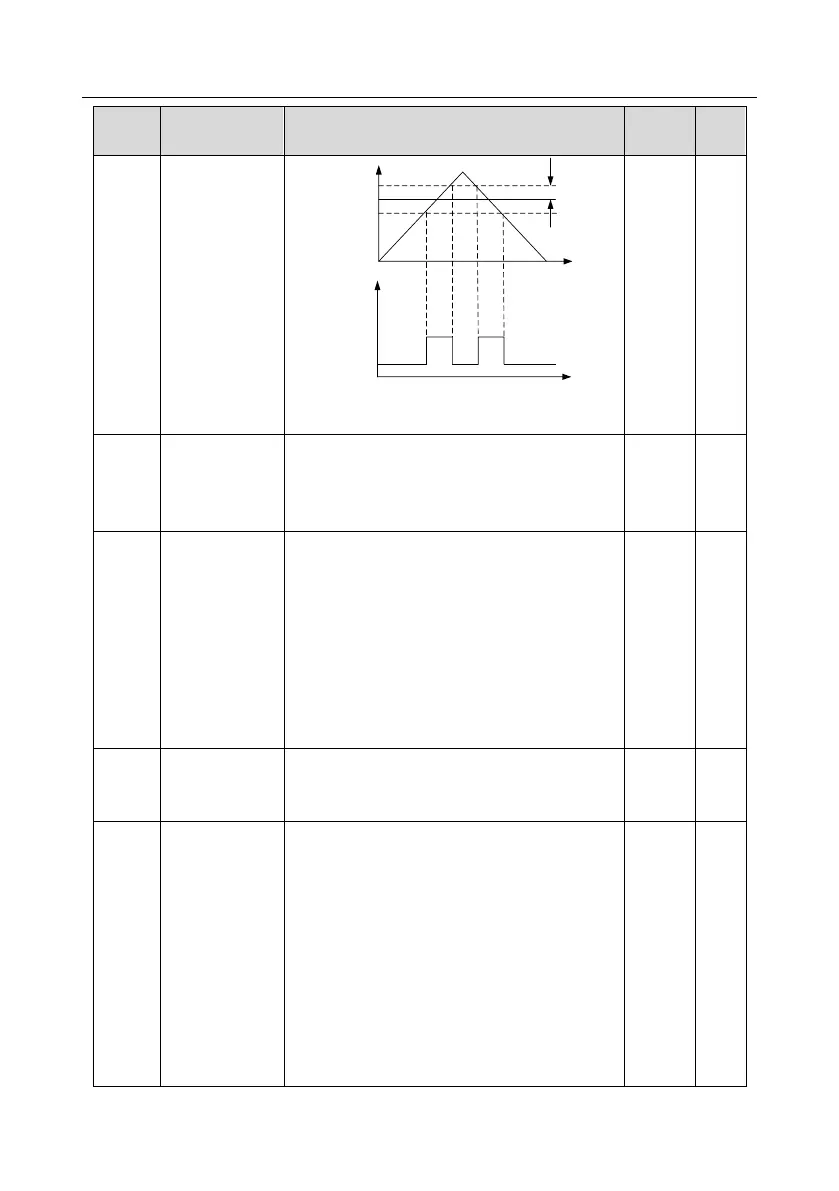

HD2 Series Inverter Function Parameter List
-187-
Function
code
Name
Description
Default
value
Modify
Y,
RO1, RO2
Output frequency
Set
frequency
Detection amplitude
Time t
Time t
Setting range: 0.00Hz–P00.03 (Max. output
frequency)
P08.37
Enable/disable
energy-
consumption
brake
0: Disable energy-consumption
1: Enable energy-consumption
1
○
P08.38
Energy-
consumption
brake threshold
voltage
Set the starting bus voltage of
energy-consumption brake, adjust this value
properly can brake the load effectively. The default
value will change with the change of voltage class.
Setting range: 200.0–2000.0V
220V
voltage:
380.0V.
380V
voltage:
700.0V.
660V
voltage:
1120.0V
○
P08.39
Running mode of
cooling fan
0: Common running mode
1: The fan keeps running after power-on
2: Running mode 2
0
○
P08.40
PWM selection
0x0000–0x1121
Ones place: PWM mode selection
0: PWM mode 1, 3PH modulation and 2PH
modulation
1: PWM mode 2, 3PH modulation
Tens place: PWM low-speed carrier limit
0: Low-speed carrier limit mode 1
1: Low-speed carrier limit mode 2
2: No limit
Hundreds place: Deadzone compensation method
0: Compensation method 1
0x1101
◎
