IMO HD2-3.7A-43 - A.8.2 UVW incremental PG card (HD2-E-PGI)

HD2 Series Inverter Expansion Cards
-346-
Indicator definition
Indicator No.
Definition
Function
LED1
State indicator
On: The expansion card is establishing a
connection with the control board.
Blinking periodically: The expansion card is
properly connected to the control board (the
period is 1s, on for 0.5s, and off for the other
0.5s).
Off: The expansion card is disconnected from the
control board.
LED2
Network connection
status indicator
On: The physical connection to the upper
computer is normal.
Off: The upper computer is disconnected.
LED3
Network
communication status
indicator
On: There is data exchange with the upper
computer.
Off: There is no data exchange with the upper
computer.
LED4
Power indicator
On: The control board feeds power to the
communication card.
A.7.4 CANopen communication card (HD2-E-COP) and CAN master/slave control
communication card (HD2-E-CAN)

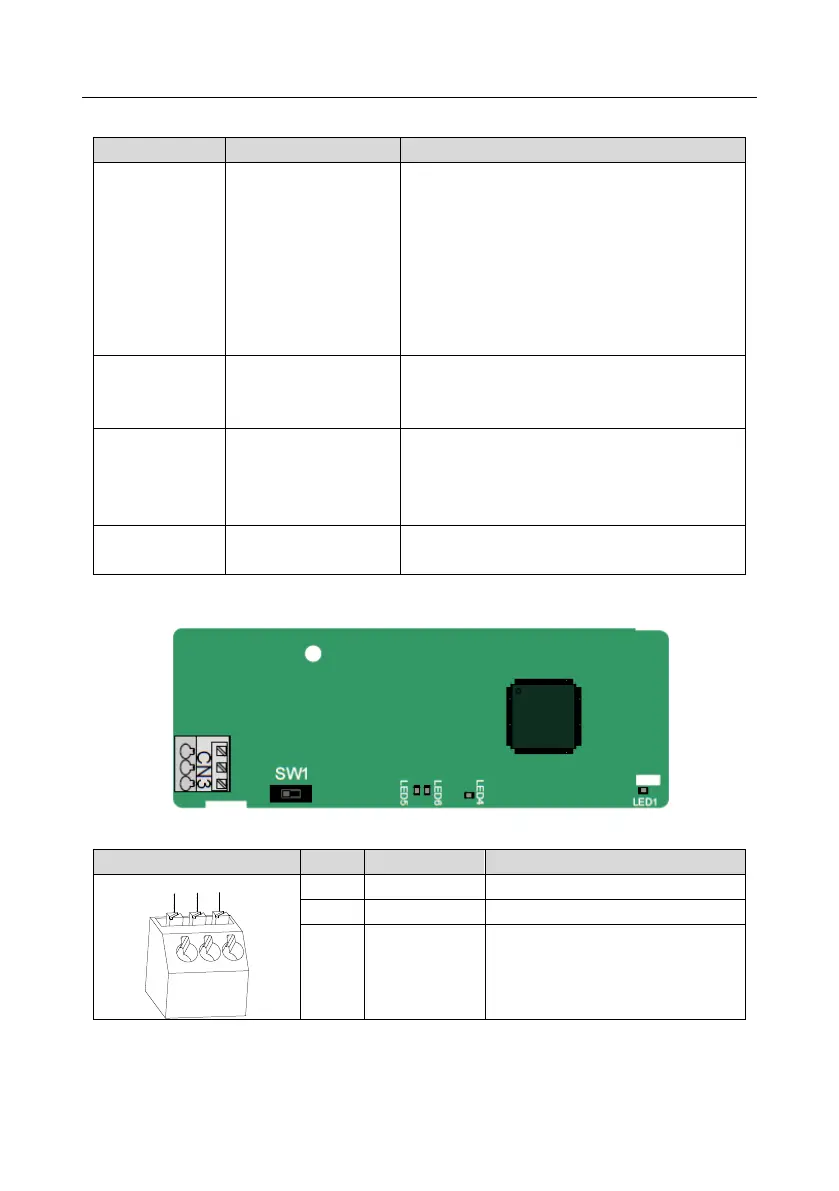

The HD2-E-COP/511 communication card is user-friendly, adopting spring terminals.
3-pin spring terminal
Pin
Function
Description
321
1
CANH
CANopen bus high level signal
2
CANG
CANopen bus shielding
3
CANL
CANopen bus low level signal
