HD2 Series Inverter Optional Peripheral Accessories
-388-
Input reactor DC reactor Output reactor

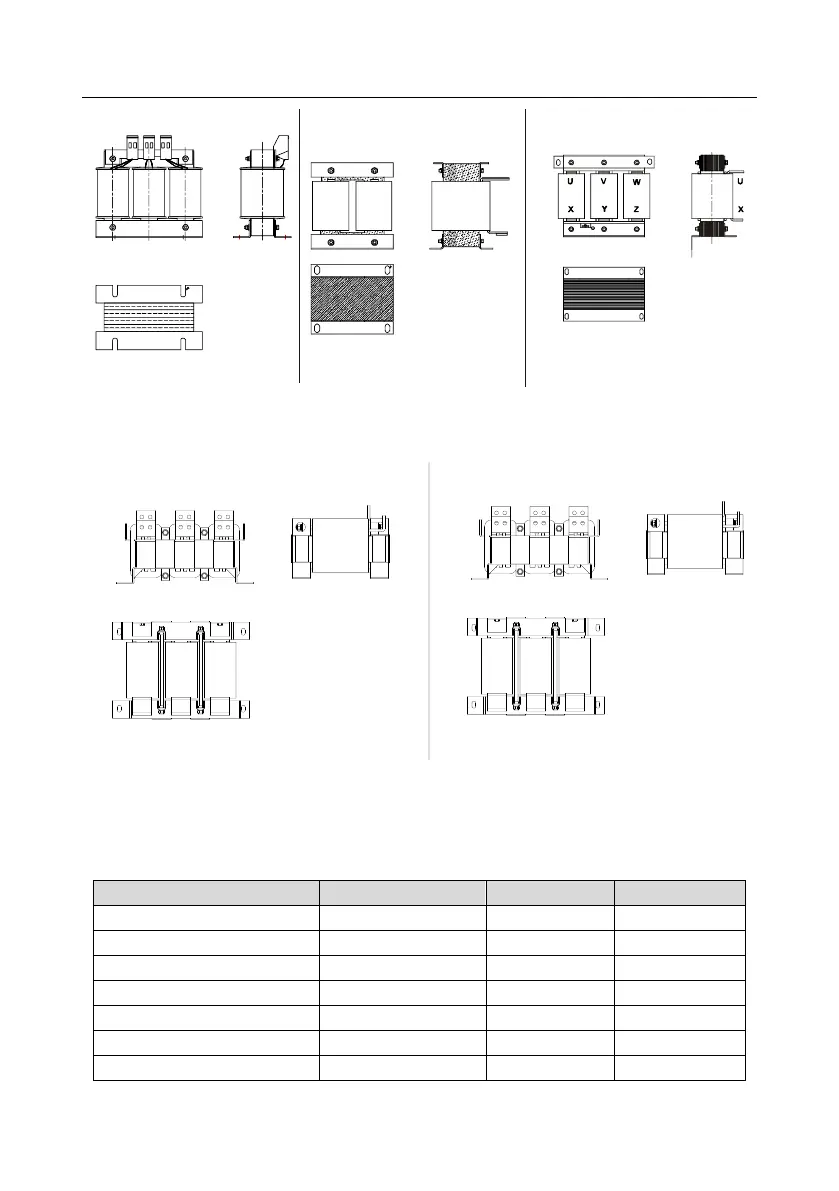

Figure D-1 Vertical reactor diagram for 380V 315kW and lower and 660V 350kW and lower
R
(X)
S
(Y)
T
(Z)
Input reactor
U
(X)
V
(Y)
W
(Z)
Output reactor
Figure D-2 Horizontal reactor diagram for 380V 350–500kW and 660V 400–630kW
D.6.1 For a single inverter
Table D–7 Reactors for AC 3PH 380V (-15%)–440V (+10%)
Inverter model
Input reactor
DC reactor
Output reactor
HD2-3.7A-43
ACLC-1.5-4
/
OCLC-1.5-4
HD2-5A-43
ACLC-2.2-4
/
OCLC-2.2-4
HD2-9.5A-43
ACLC-4.0-4
/
OCLC-4.0-4
HD2-14A-43
ACLC-5.5-4
/
OCLC-5.5-4
HD2-18.5A-43
ACLC-7.5-4
/
OCLC-7.5-4
HD2-25A-43
ACLC-11-4
/
OCLC-11-4
HD2-32A-43
ACLC-15-4
/
OCLC-15-4
