IMO iSmart V4 - Page 110

Chapter 5 Relay Ladder Logic Programming 96
-
RTC Mode 2 (Interval weekly)

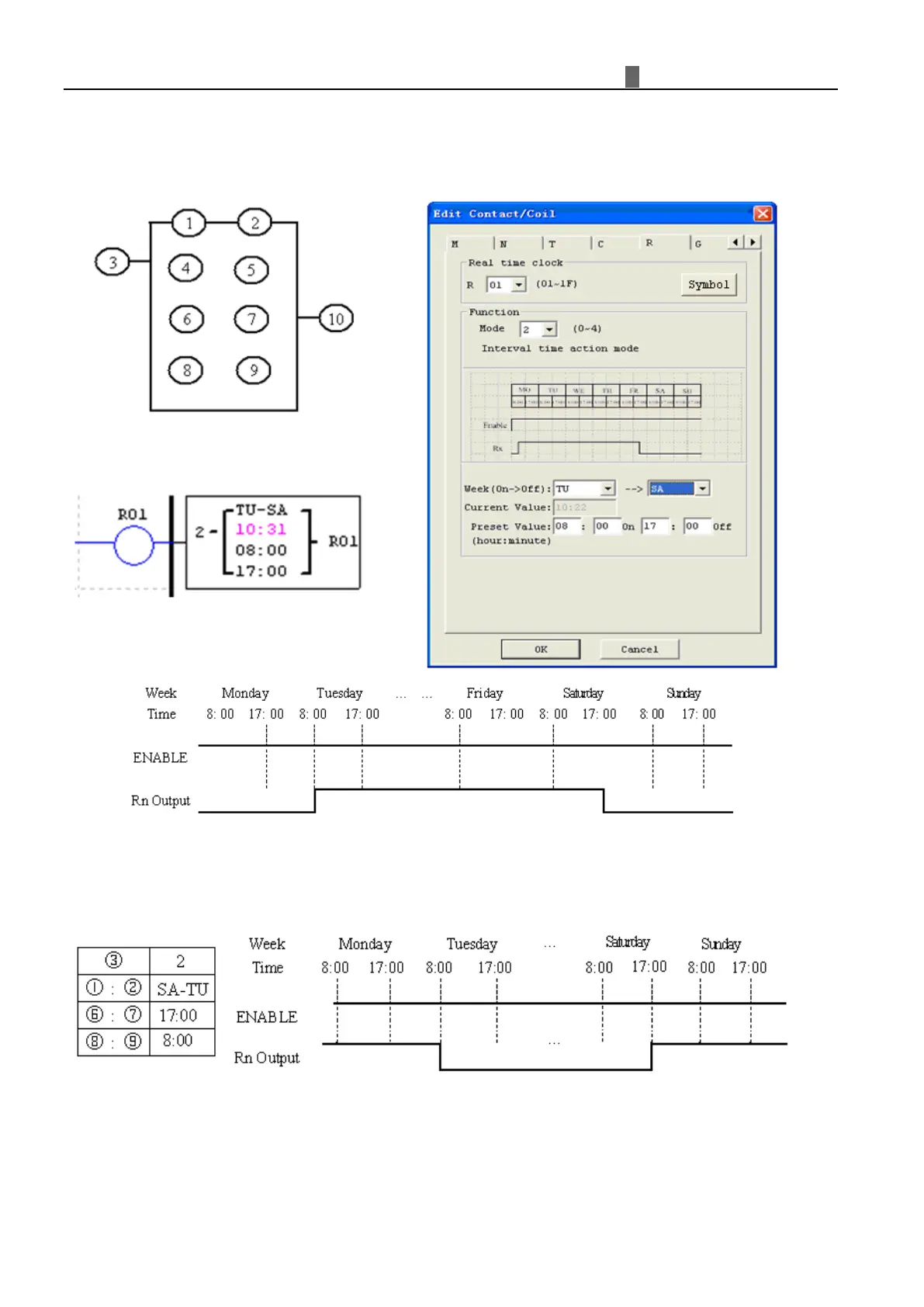

The Interval Time Mode 2 allows the RTC coil acting based on time and day per week. The configuration dialog
below (example 1) allows setting the start-working time and stop-working time between two days in each week.
Example 1:
Ex
ample 2:
