Chapter 6 FBD Block Diagram Programming 146

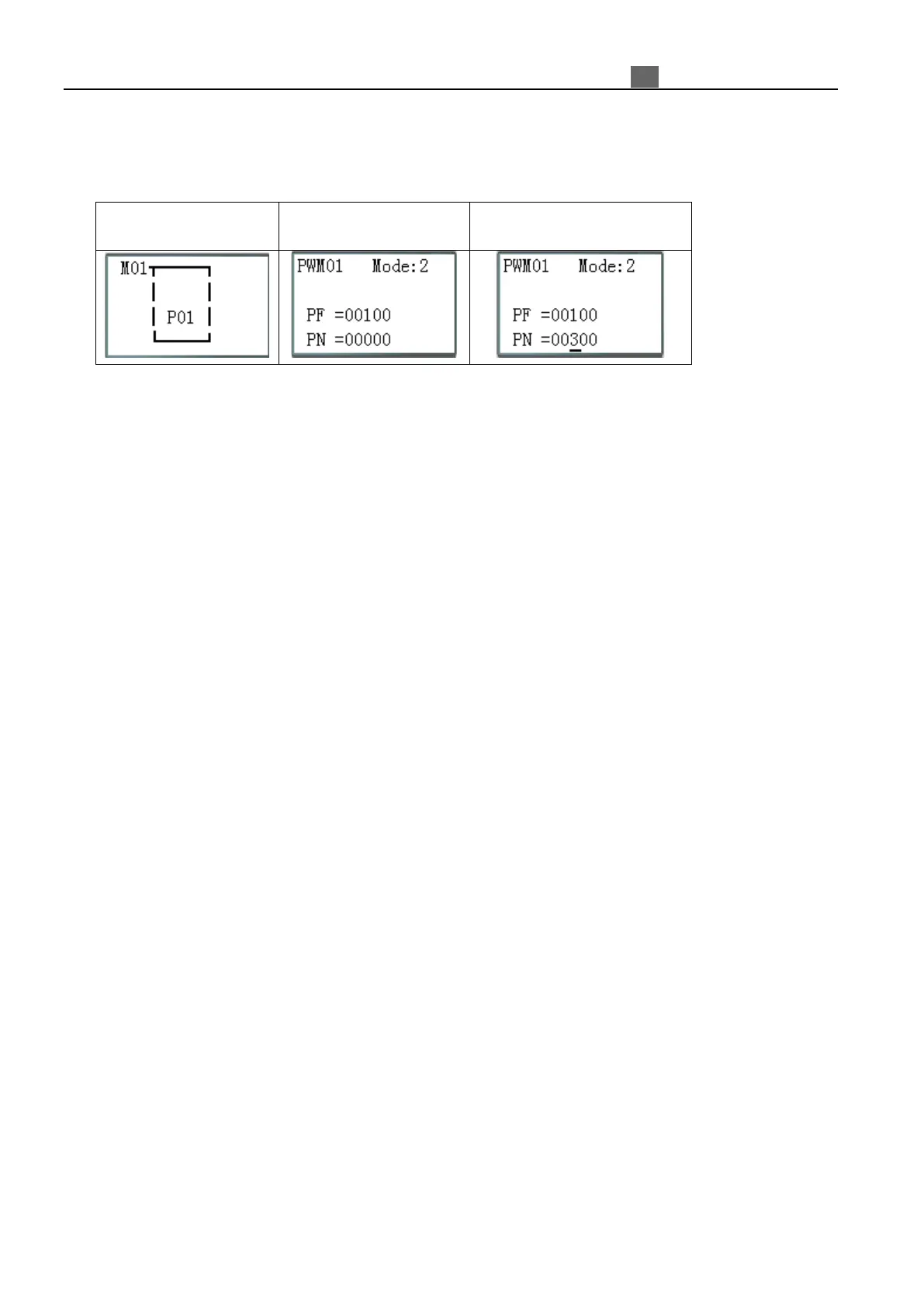

Coil output display in
FBD mode
Click “OK” to enter
function display
Click “SEL” to select preset
value.
T
he preset of A/B phase PLSY output frequency and number of outputs could be a constant, and other encoder
code either. PLSY will stop output once the number of output pulse reaches setting value. If PLSY enabled again,
the setting value of output pulse will be increased from current pulse output number.
※P
ulse frequency can be changed during PLSY operation, the default number of output
pulse is 100.
※W
hen mode 5 is operation, if output frequency is higher than 1000, mode 5 will use
1000 to be pulse output frequency setting value.
※Mode 5 will stop output once the pulse output reaches preset value.
※If the setting value of pulse output is 0, PWM mode 5 will keep sending output pulse until PLSY disabled.
