Chapter 6 FBD Block Diagram Programming 145

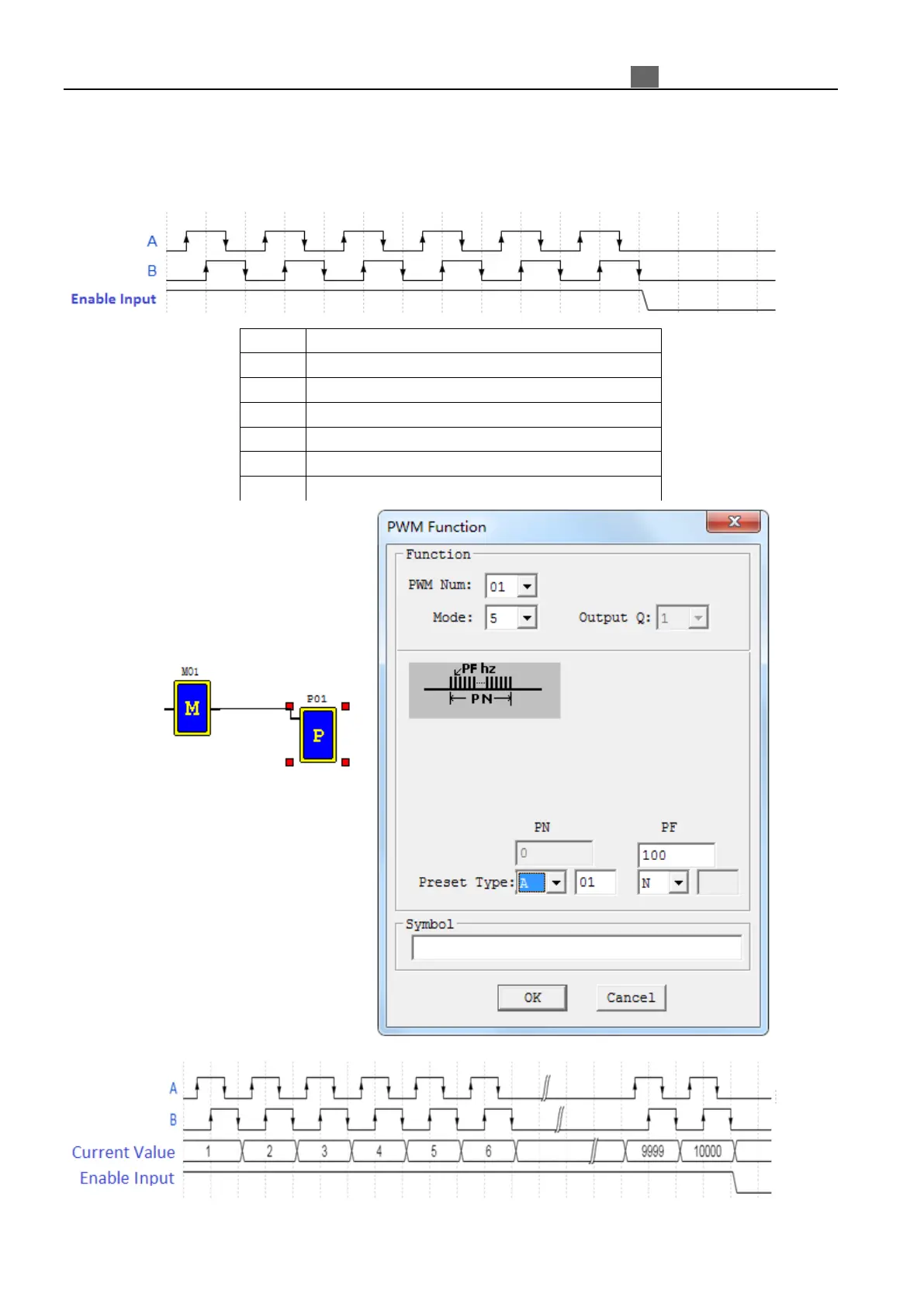

PWM Mode 5(AB Phase PLSY Mode)
AB phase PLSY function is similar normal PLSY function, but A/B phase PLSY mode is used Q1 and Q2 port at same
time, it will send the pulse which Q1(phase A) leads Q2 (phase B).
PWM mode 5 built-in 6 parameters, please see the photo below.
Number of PLSY output pulse
PF : PLSY output frequency (1~1000Hz)
PN : Setting value of PLSY output pulse (0~32767)
