Chapter 3 Program Tools 32
Stop display
Run display
E

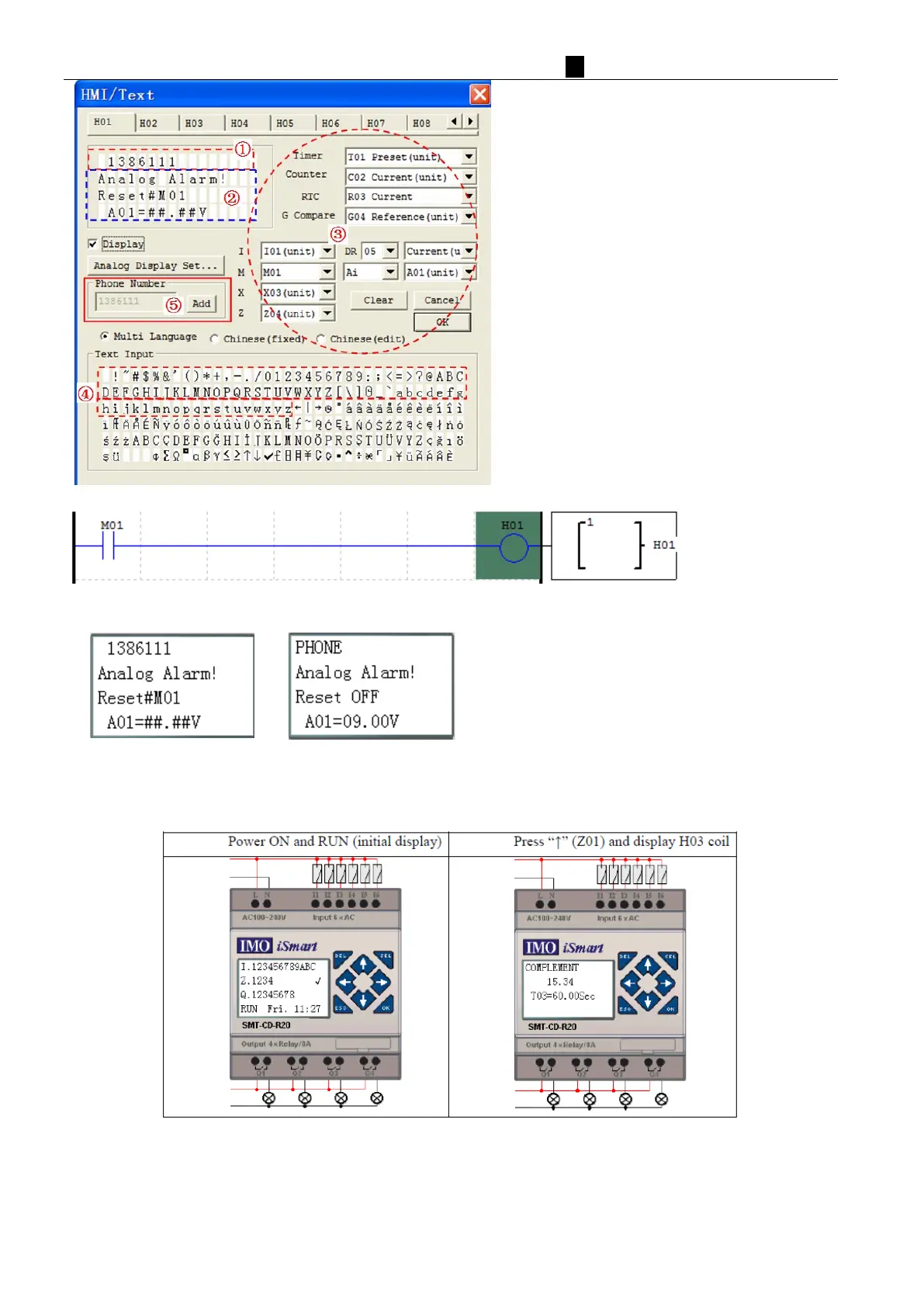

xample: HMI/TEXT and Z keypad input function
Line1 set telephone number (shown as ①).
Only set by dialog ⑤ and max 15 number
characters.
Line2~line4 set text information (show as
②), include preset value and current value
of function block, coil status (shown as ③)
and ASCII characters (shown as ④).
Example:
1, iSmart saved H01 display information
(M01 status and A01 value) when M01 is
enabled rising edge.
2, Extension GSM module send SMS to
telephone (H01 line1 number) after reading
message (H01 line2~line4 text information).
