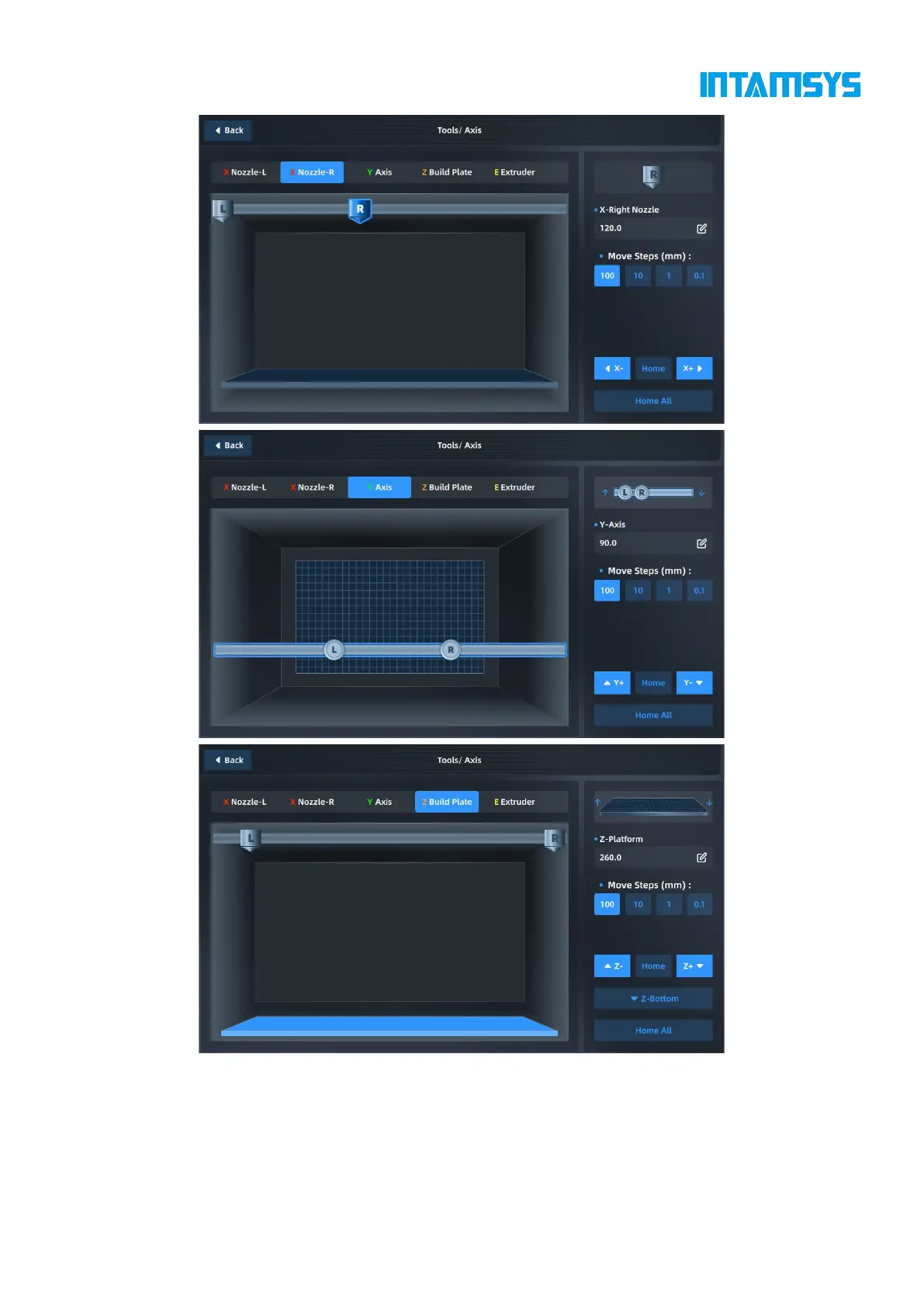

Fig. 4.24 Moving Axis

4.5.2 Calibration

Click the "Calibration" button in the Tools interface to enter the interface of printing build plate

leveling and L&R Nozzle Z and XY calibration.
