JR X9303 2.4 - Hovering Pitch Lever; Example of Throttle Curve and Pitch Curve Settings

Hovering Pitch Lever
H-26
The Hovering Pitch lever operates in the same manner as
the Hovering Throttle knob. It is only operable while the
flight mode switch is in the ‘’N’’ (normal) position, and its
function is to shift the middle portion of the curve upward
or downward.
Example of Throttle Curve and Pitch Curve
Settings

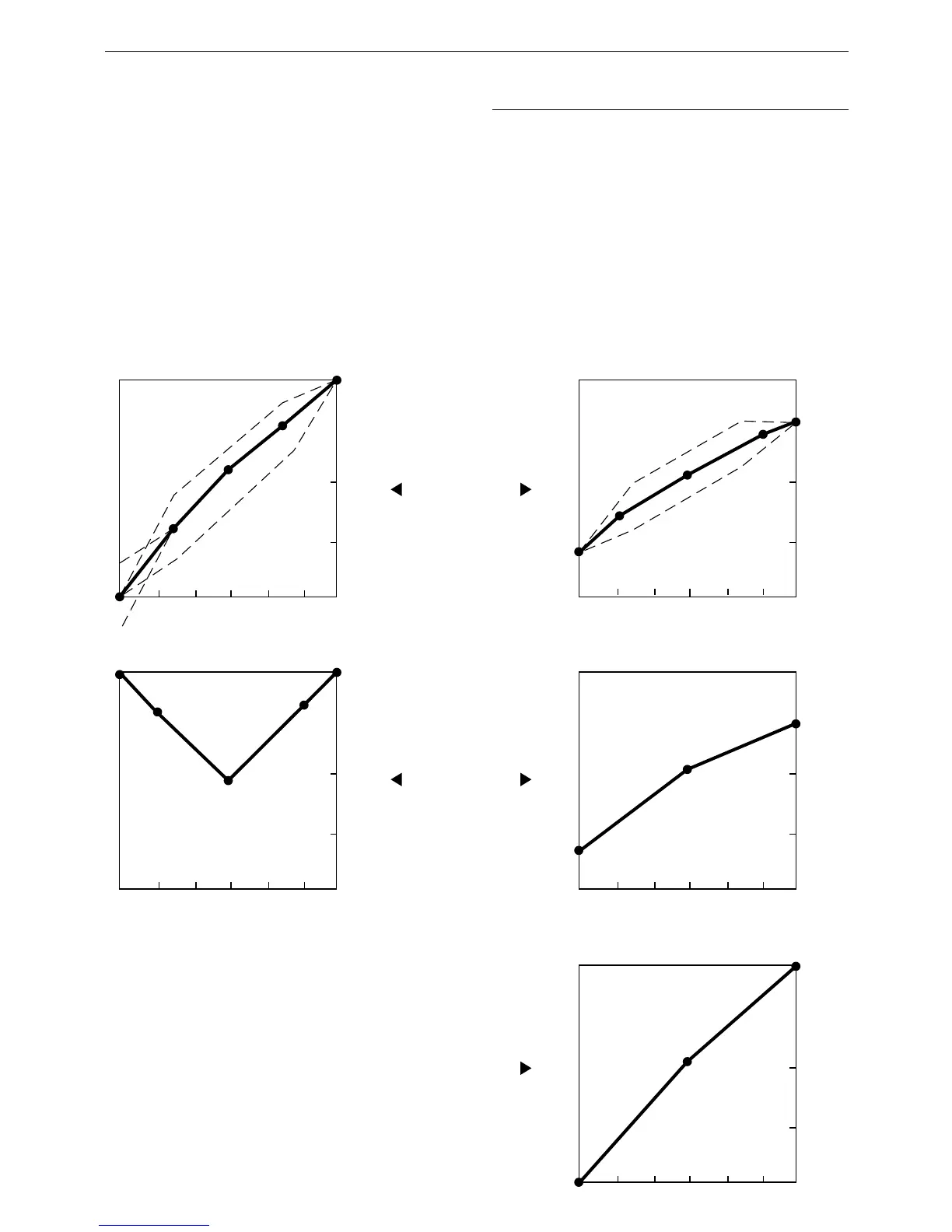

An example of throttle curve and pitch curve settings for
aerobatic specifications are shown below in the form of
graphs. Details of the curves will differ depending on the
helicopter specifications. In these examples, the throttle
open-close stroke and autorotation pitch stroke are set 0
to 100 to ease your understanding of other curves.
Note: Dotted line indicates Throttle and Pitch curve range/movements using
the Hover Throttle and Hover Pitch levers.
1 2 3 4 5L H
1 2 3 4 5L H
1 2 3 4 5L H
1 2 3 4 5L H
1 2 3 4 5L H
0%
50%
100%
Pitch
0%
50%
100%
Pitch
0%
50%
100%
Pitch
0%
50%
100%
Throttle
0%
50%
100%
Throttle
Normal
Hover
Stunt 1
Aerobatics
Throttle
Hold
