Step #28 Flap Rate, Camber Mix and Camber Adjust
S-59
Most pilots prefer to have variable camber adjustment
during cruise. This enables fine adjustments to be made
in flight-based conditions.
Important: The flaperon and elevator values in the
camber mix menu are based on a percentage of the
programmed flap rate. The flap rates are defaulted
to 0% from the factory, so flaperon and elevator mix
values have no effect until the flap rate values are
set. Because of this, it’s mandatory to first adjust the
flap rates before adjusting the flaperon and elevator
camber mixes. Also remember that changing the
flap rate values also affects the flaperon and elevator
camber mix.
Flap Rate
In

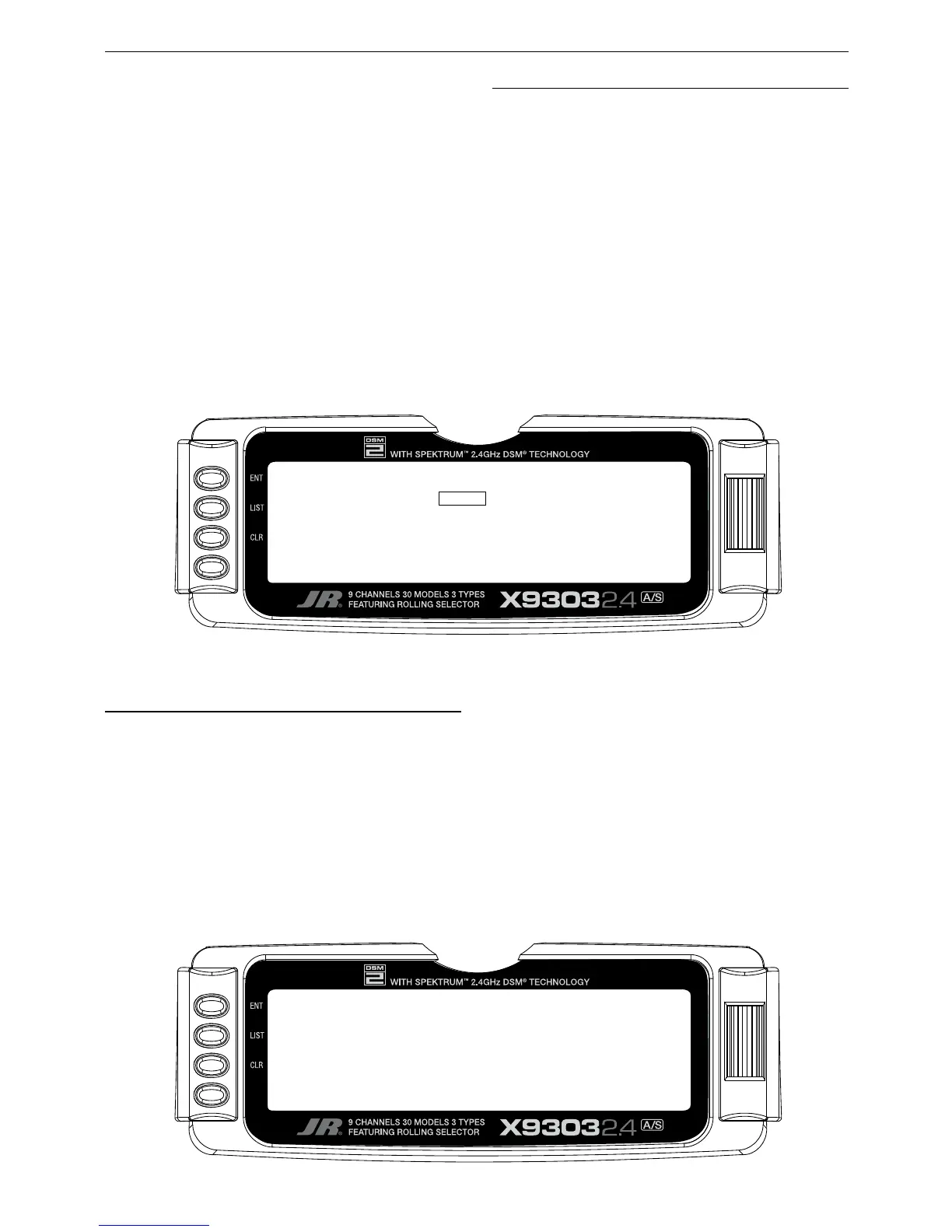

FUNC.LIST rotate the Selector until Flaprn MX is
highlighted. Press the Selector to access the Flap Rate
menu. Rotate the Selector to highlight the cruise down
value then press the Selector to access this value. With
the flight mode switch in the middle cruise mode, move
the left side lever to the lowest position and adjust the
down value to the desired flap position. Now with the
flight mode switch in the middle cruise mode, move the
left side lever to the uppermost position and adjust the up
value to the desired flap position. Press the LIST button
to return to the Function Mode screen.
Flaperon Mix
Note: Flap rate must be set before camber mix.
In
FUNC.LIST rotate the Selector until Flaprn MX is
highlighted. Press the Selector to access the Camber
Mix menu. Rotate the Selector to highlight the cruise
FPRN down value then press the Selector to access this
value. With the flight mode switch in the middle cruise
mode, move the left side lever to the lowest position and
adjust the down value to the desired flaperon position.
Press the Selector to store the value. Now with the flight
mode switch in the middle cruise mode, move the left side
lever to the uppermost position and adjust the up value
to the desired flaperon position and store by pressing
the Selector. Repeat the process for the up and down
elevator camber mix. Press the LIST button to return to
the Function Mode screen.
