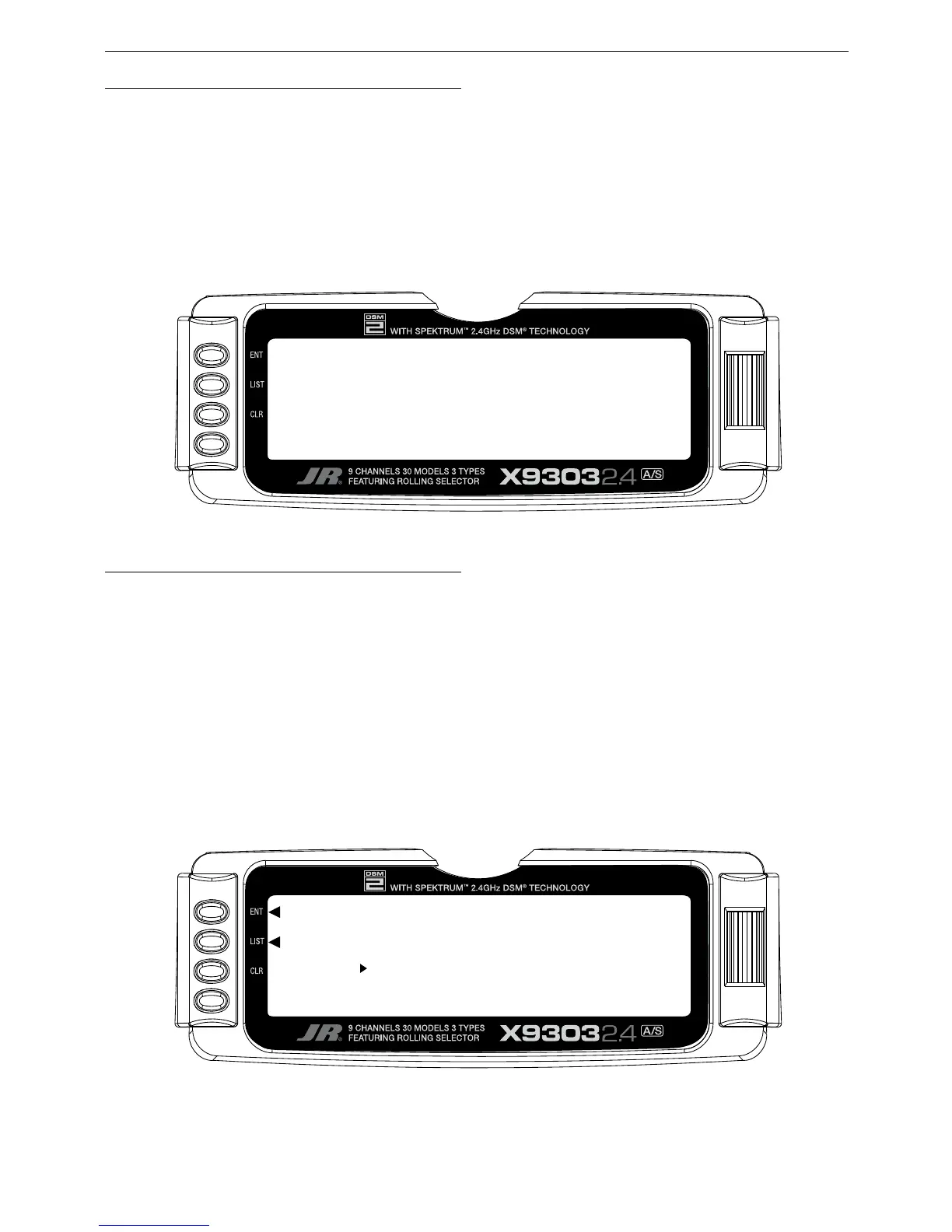

Step #21 Flap Rate, Camber Mix and Camber Adjust (continued)
S-54
Flaperon Mix
Note: Flap rate must be set before camber mix.
In
FUNC.LIST rotate the Selector until Flaprn MX is
highlighted. Press the Selector to access the Camber
Mix menu. Rotate the Selector to highlight the launch
FPRN down value then press the Selector to access
this value. With the flight mode switch in the upper
launch mode, move the left side lever to the lowermost
Flaperon Mix Delay
The camber adjust menu allows the programming of a
delay from 0 to 2 seconds. This delay affects the flap,
flaperon and elevator presets when switching from one
flight mode to another. When inhibited, no delay occurs
and the servo immediately transitions from one preset trim
position to another when the flight modes are switched.
With a delay programmed the transition is smooth relative
to the delay time. A break-off function is available that can
be programmed to override the delay, based on a selected
elevator stick position. For this setup, we will program a
1.0 second delay for Launch.
position and adjust the down value to the desired flaperon
position. Press the Selector to store the value. Now with
the flight mode switch in the upper launch mode, move
the left side lever to the uppermost position and adjust
the up value to the desired flaperon position and store
by pressing the Selector. Repeat the process for the up
and down elevator camber mix. Press the LIST button to
return to the Function Mode screen.
In
FUNC.LIST rotate the Selector until FM Delay is
highlighted. Press the Selector to access the Camber
Adjust menu. Rotate the Selector to highlight the launch
delay value then press the Selector to access this value.
Rotate the Selector to adjust the value to 1.0s (seconds)
Press the Selector to store the value. Press the LIST
button to return to the Function Mode screen.
