JR X9303 2.4 User Manual

Elevator-to-Flap Mix Pg. S-21
Travel Adjust Pg. S-21
Dual Rate and Exponential Pg. S-18
Reversing Switch Pg. S-19
Sub Trim Pg. S-20
Differential Pg. S-22
Aileron-to-Flap Mix Pg. S-22
Function Mode
S-16

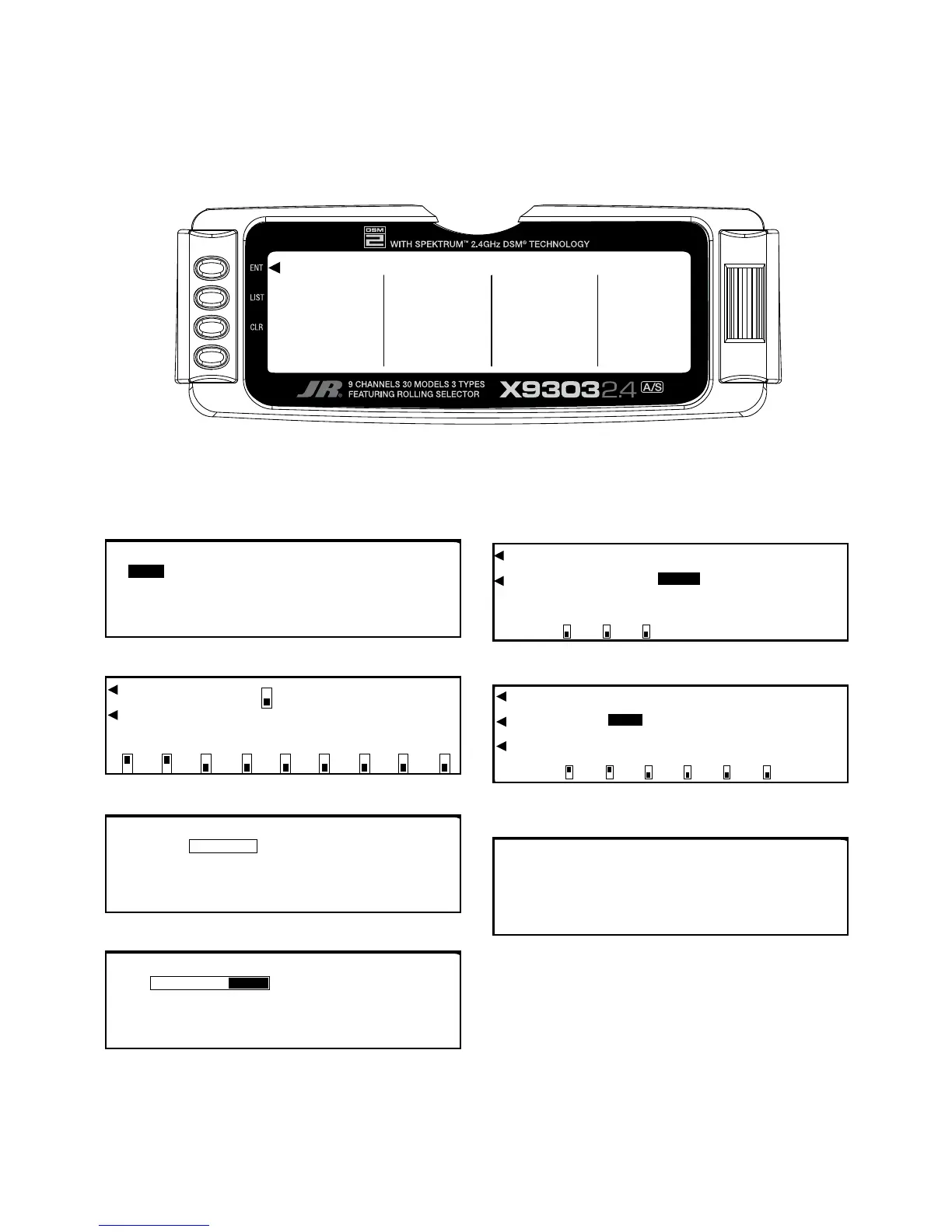

Function mode contains the following screens:
Programs found in the function mode are more frequently
used. Not only are these functions used during initial
setup, but many of these are commonly adjusted at the
field to change/optimize the flight characteristics and
response of an aircraft.
To enter function modes, turn on the transmitter
then press the ENT button. To enter the function list
mode, press the list mode after the function mode
has been selected.
D/R EXP
110% 30
110% 30
125% 30
125% 30
125% 30
125% 30
[D/R & EXP]◊0
POS-0
POS-1
POS-2
AILE
AUTO
CRUI:0
LAUN:1
LAND:2
[REV SW.]
LAI RAI ELE RUD MOT FLP AX2 AX3 AX4
REV.
NORM
[Sub Trim]
LAIL 0 RFLP D 225
RAIL 0 LFLP U 225
ELEV 0 AUX2 0
RUDD 0 AUX3 0
AUX4 0
[TRVL ADJ.]
LAIL L 81% R 81% RFLP +100% -100%
RAIL L 81% R 81% LFLP U100% D106%
ELEV D 59% U 50% AUX2 +100% -100%
RUDD L 54% R 56% AUX3 +100% -100%
AUX4 +100% -100%
[ELE≥FLP M]◊0-U
DN UP Offset
Pos1: 0% 0% 0
Pos0: 0% 0% 0
AX4 BTF RUD
POS1
POS0
[AIL≥FLP M]◊0
CRU LAU LND AX4 BTF RUD
POS1
POS0
Pos0: 0% Pos1:+ 16%
[DIFFEREN.]
AILE
+60%
+50%
+20%
FLAP
+40%
+30%
0%
CRUISE
LAUNCH
LAND
◊
D/R & EXP
REV. SW
Sub Trim
TRVL ADJ.
ELE FLP M
AIL RUD M
DIFFEREN
FM Delay
Flaprn MX
AIL≥RUD M
Butterfly
FLAP RATE
Prog. Mix1
Prog. Mix2
Prog. Mix3
Prog. Mix4
Prog. Mix5
Prog. Mix6
Trainer
TIMER
MONITOR
[FUNC. LIST]
