Trainer Programmable Trainer System
X9303 2.4 USED AS MASTER (INSTRUCTOR) – (Trainer System)
S-36
The X9303 2.4 contains a Trainer System that allows
the instructor to transfer some or all of the primary
flight control functions (Throttle, Aileron, Elevator and
Rudder) to the student. It also allows for indicating if
the transmitter is to be the Master (controlled by the
instructor) or Slave (controlled by the student). The
Trainer (TRN) switch is used to transfer control to the
student when the X9303 2.4 is being used as the Master/
Instructor transmitter.
1. Connect the Trainer cord between the Master and
Slave transmitters. Turn the power on to the Master
transmitter (the Slave transmitter remains powered off
and can even have the module removed).
2. Make sure the Slave transmitter is in the PPM/FM
modulation mode. If the slave system is a X9303 2.4
or any other system that is Spread Spectrum only,
such as other JR 2.4GHz systems or Spektrum brand
systems, this does not apply.
3. Highlight and select Trainer in the FUNCTION LIST to
obtain the Trainer Display.
4. If the X9303 2.4 is being used as the Master transmitter
(the transmitter operated by the instructor), select
the channel(s) that are to be operated by the Slave
transmitter (transmitter operated by the student) when
the trainer switch is depressed.
When all channel selectors are in the
MAST position,
NORMAL appears on the display and all 4 channels
are transferred to the student when the trainer
switch is depressed.
If only certain channels are to be transferred to the
student, highlight and select the channels that are to be
transferred, moving the indicator for these channels to
the SLAV position for these channels. When less than all
channels are selected as SLAV, PROGRAM T appears on
the display indicating that the Trainer System has been
programmed to transfer only selected channels.
The X9303 2.4 is now ready to be used as the Master
or instructor transmitter. Pull the TRN switch forward
to transfer control to the student. Control will remain
transferred until the TRN switch is released.

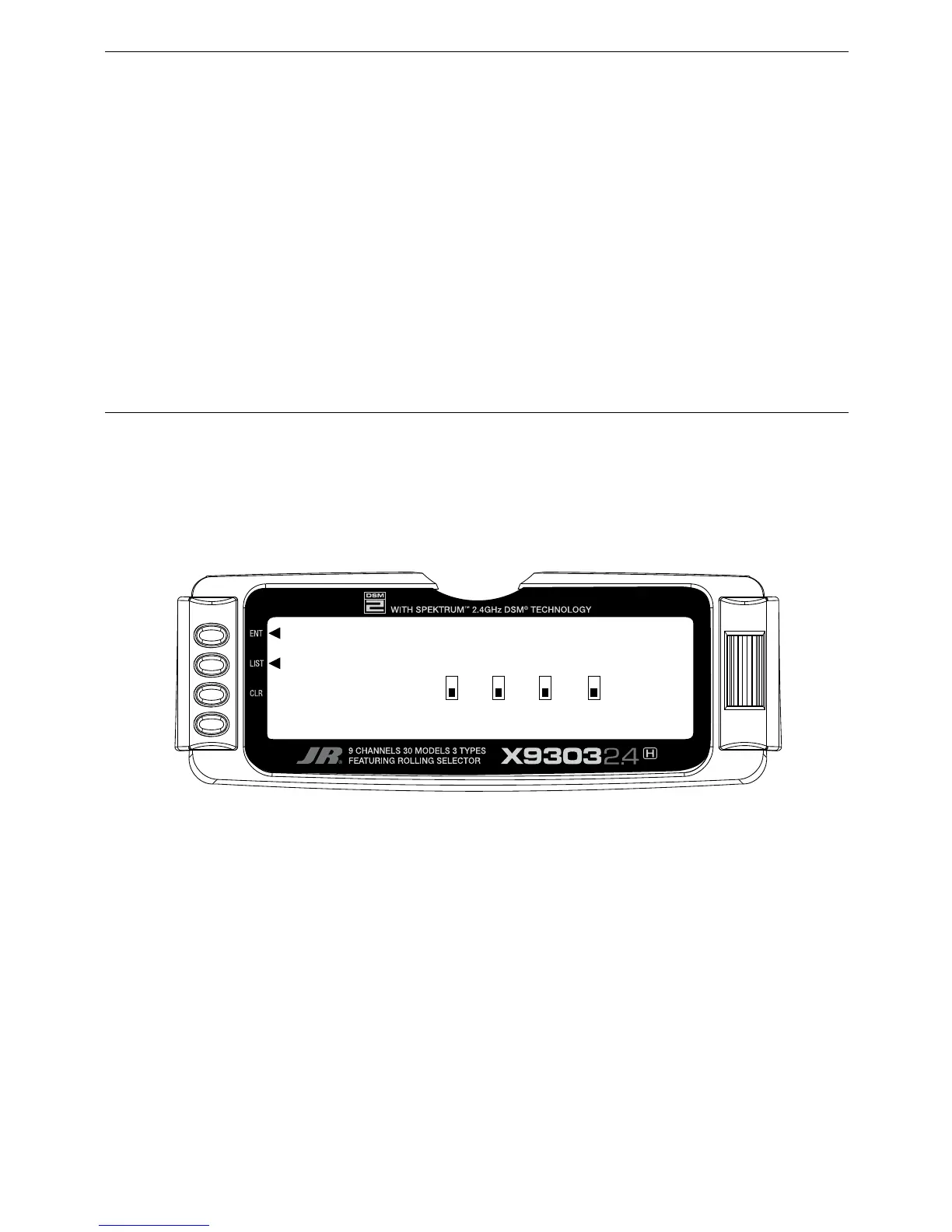

[Trainer]
MASTER NORMAL T.
ch THRO AILE ELEV RUDD
SLAV
MAST
