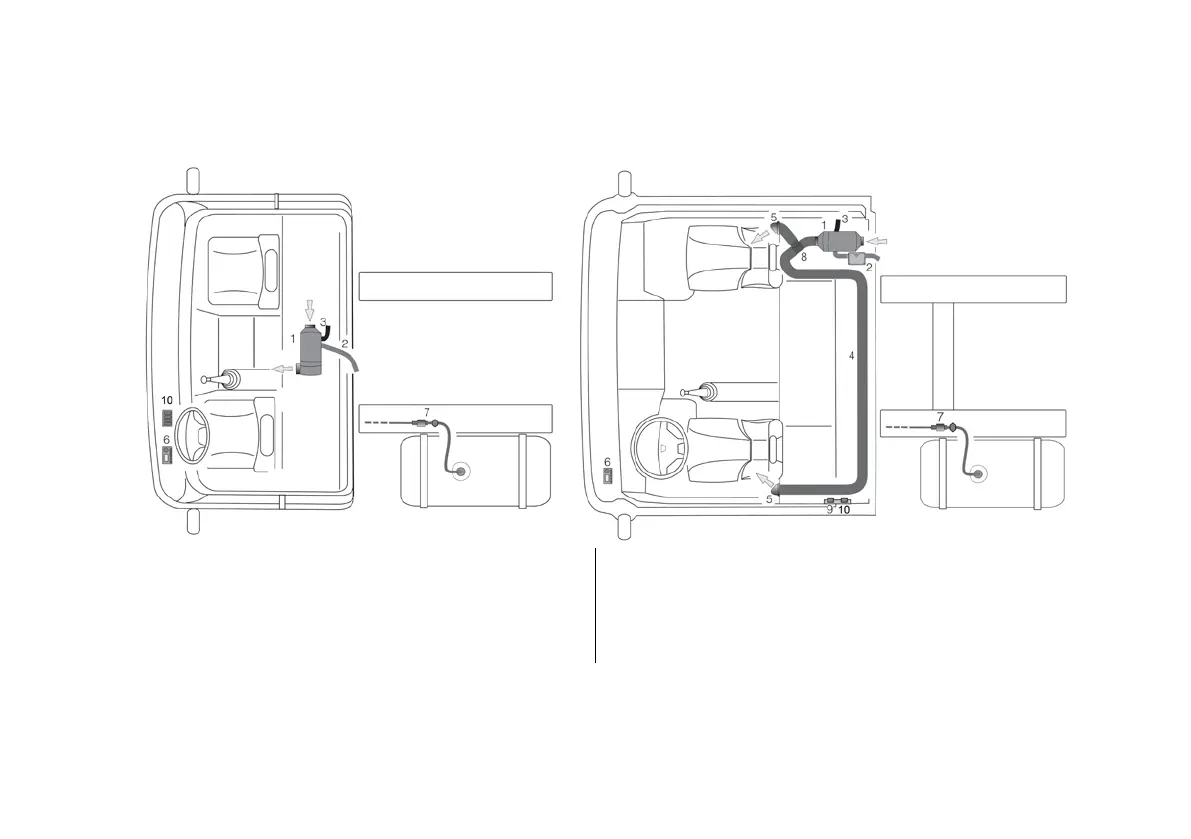

1. SELF-CONTAINED HOT-AIR HEATING SYSTEM PLAN IN THE CAB

1 - Self-contained device for heating air;

2 - exhaust system;

3 - air supply tube in combustion chamber;

4 – air conduct;

5 - rotating outlet vent;

6 - control panel (timing device);

7 - metering pump assembly with fuel filter;

8 – T-connector;

9 - supplementary switch;

10 - temperature detector.

Night cab

Day cab
