KAMAZ 5490 - Drivers Working Place

4-2
DRIVER’S WORKING PLACE

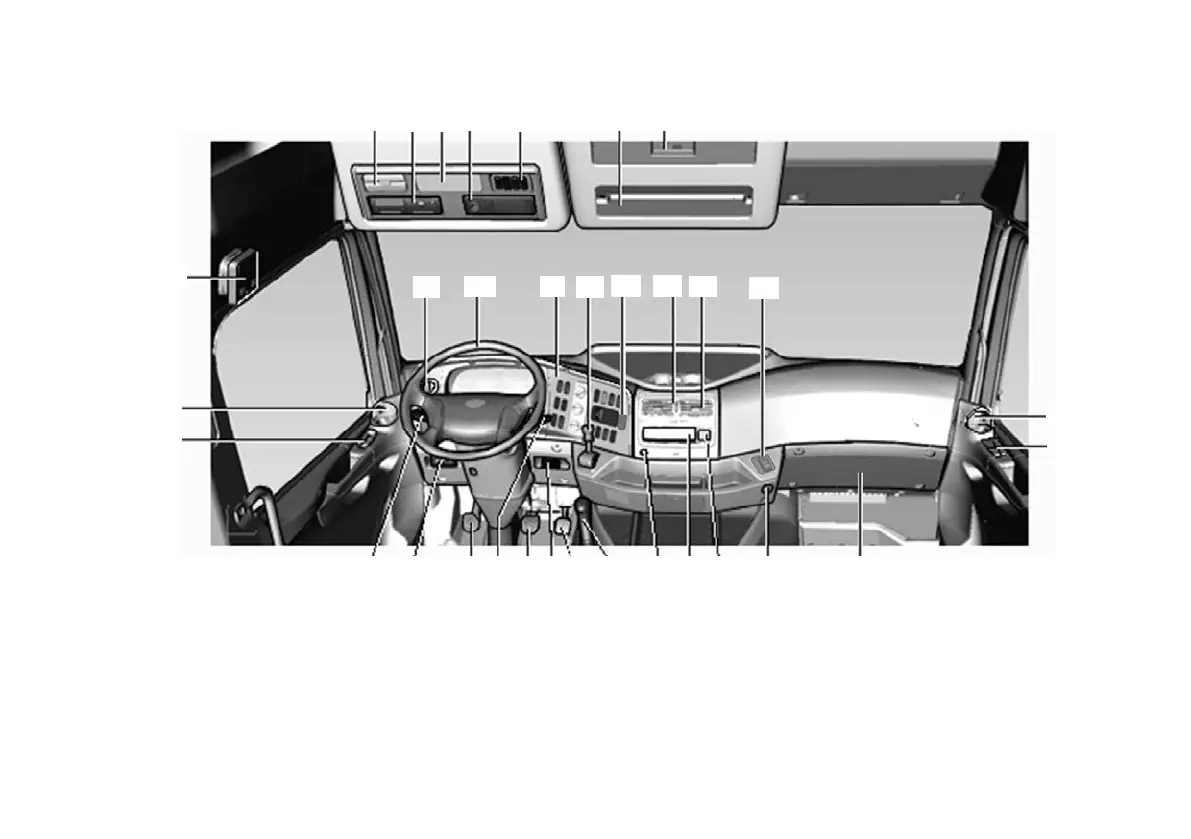

Driver’s working place
1
– switch block on driver's door; 2,10,17 – ventilation and heat deflectors; 3 – smoke detector; 4 –
cab heat control console panel (if available);
5
– tachograph; 6 – terminal for radio receiver energizing ; 7 – switch block; 8, 27 – clothes compartment; 9 – glove box; 11 - switch block on passen-
ger's door; 12
– light switch; 13 – steering wheel; 14 – instrument panel; 15 – parking brake; 16 – central part of instrument panel; 18 –
combination
switch;
19 – starting preheater control console panel; 20 – clutch panel; 21 –
control selector switch of automated gearbox and auxiliary brake system;
22
– brake pedal; 23 – diagnostics connector; 24 – fuel supply control panel; 25 – gear shift lever; 26 – jumper cable; 28, 29 –
electrical sockets;
30
– fuse box cover; 31 – terminal for radio station energizing; 32, 33 – user interface block (for emergency response service calling unit)
31
5
4
6
7
8
9
15
14
16
13
17
30
18
20
19
21
22
24
25
26
27
12
23
28
29
3
2
1
10
11
32
33
