COMBINATION SWITCH
SWITCHING OF DIRECTION INDICATOR
Pull combination switch till fixation:
- towards «4» (away from oneself») - right turn
signal;
- or «5» («toward oneself») - left turn signal.
When the steering wheel returns after long-term
turn the combination switch automatically resets.
ENGAGEMENT OF WARNING LIGHT
Shortly pull the combination switch up to position
«3». For a short period of time the pilot lamp on instru-
ment panel
and high beam light up.
HORN
Giving of audible warning is carried out through
«6» button pressing.

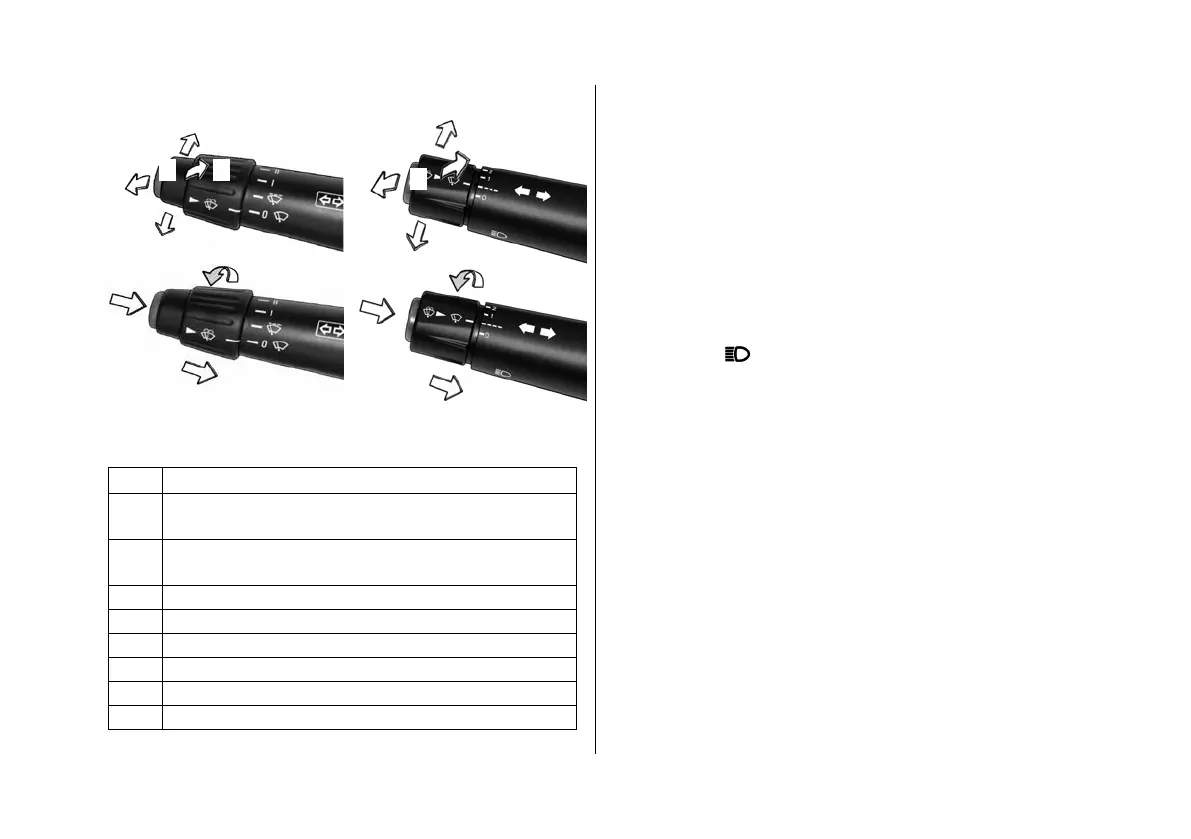

Combination switch
Version I
2
1
3
4
5
6
8
7
2
1
3
4
5
6
7
8
Version II
Pos.
Application
1
High beam is switched off (with low beam en-
gaged)
2
High beam is switched on (with low beam en-
gaged)
3
Warning light
4
Turn indicator, right
5
Turn indicator, left
6
Horn
7
Windscreen wipers
8
Windscreen washers
