4.4 Transmission maintenance for versions with
heat exchanger
NOTE
Perform maintenance works as described in Chapters
4.1 to 4.3.
Also note the following points:
• Draining the oil:
- Unscrew oil drain plug on heat exchanger (if available).
• Filling the oil:
- After the oil overflow check (Chapter 4.2.2), screw in oil
filler plug.
Tightening torque: 60 Nm.
- Shift transmission to neutral position.
- Let the engine run for approx. 2-3 minutes at around
1200 rpm. This is necessary for the heat exchanger and
the connecting lines to be fully filled with oil.
- Switch off the engine.
- Refill with oil again until it overflows.
• Check:
- Let engine run at idle speed for approx. 3 minutes.
- Shift transmission to neutral position.
- Switch off the engine.
- Check oil level, refer to Chapter 4.3.

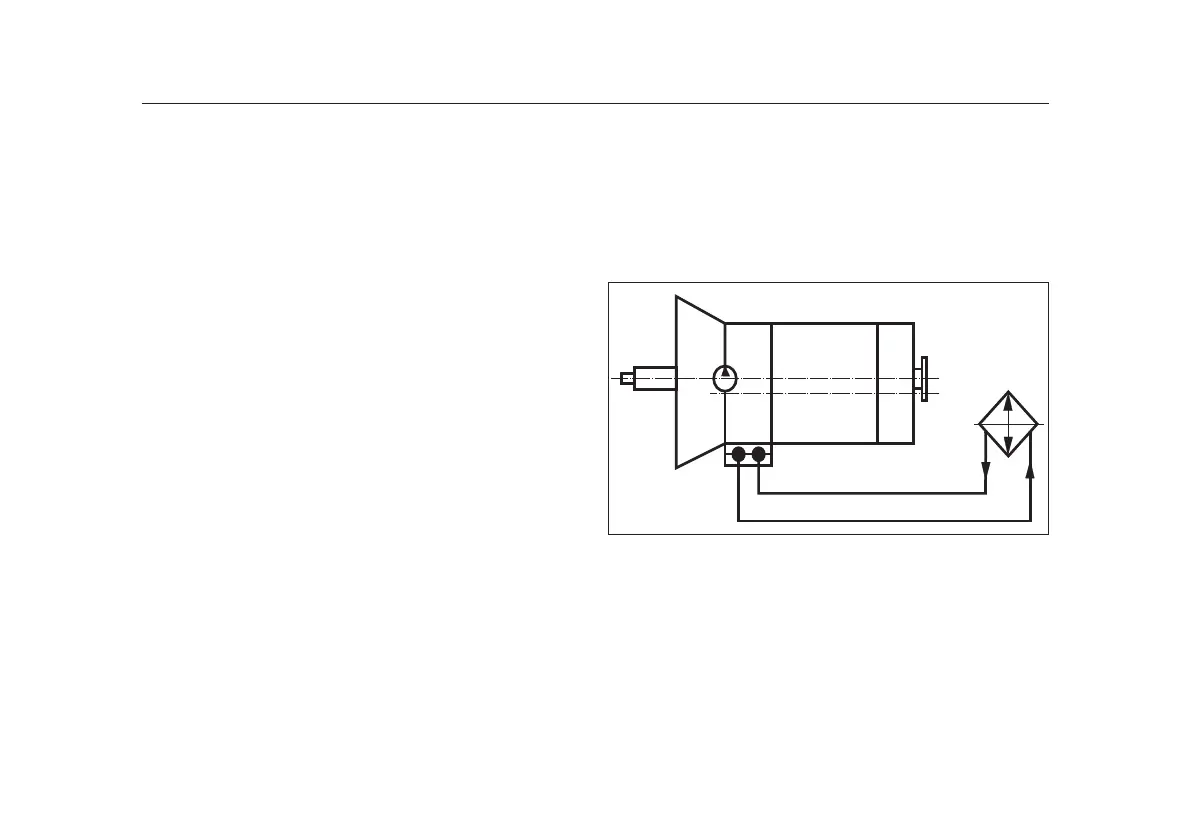

Fig. 12
Scheme: Ecosplit transmission with heat exchanger
