4-31
AIR CONDITIONING SYSTEM CONTROL
VENTILATION DEFLECTORS
The airflow direction can be adjusted by means
of deflectors located on cab doors and on instrument pan-
el (see Fig. Ventilation deflectors):
- opening - turn the flywheel 2 upwards;
- closing - turn the flywheel 2 downwards;
- adjustment - turn the ventilation deflector by
handle 1 to the necessary position.
AIR CONDITIONING SYSTEM CONTROL PANEL
Using the shifters on instrument panel of air condi-
tioning system you can regulate: air distribution, air tem-
perature, air flow.
Attention!
In case of air conditioning system elements mal-
function it is not recommended to switch the conditioner
on.
Procedures on maintenance, repair and change
of failed air conditioning system components are to be
carried out by specially trained specialists of service de-
partments!
1
1
2

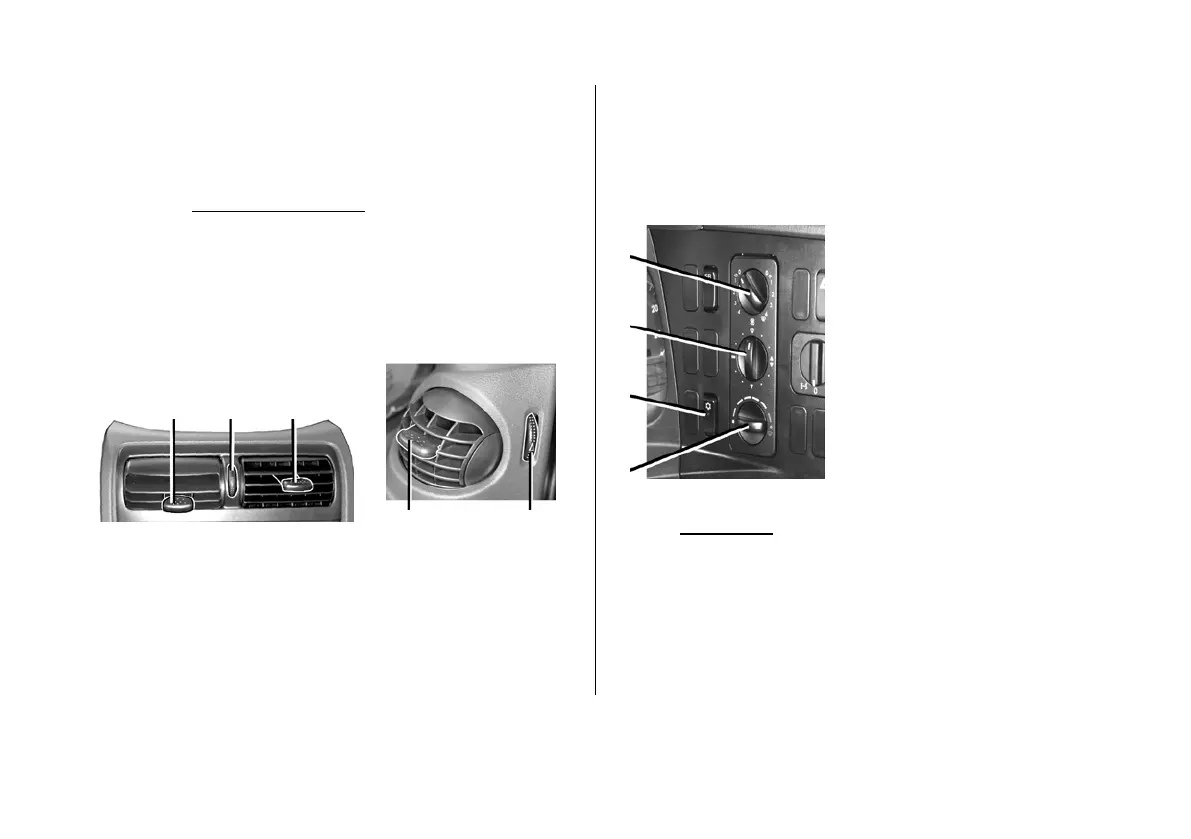

Ventilation deflectors
1 - handle; 2 - flywheel
1
2
Central part
of instrument panel
Driver's side cab door
(passenger's door, inversed manner)
Control panel
of air conditioning system
1
- conditioner switch;
2
- fan switch;
3
- air distribution regulator;
4
- temperature regulator
1
2
3
4
