KAMAZ 5490 - The Upper Bunk

4-28
THE UPPER BUNK
Attention!
Get a move on only with a folded and belt fixed
bunk.
It is forbidden to be on the upper bank of the
driving vehicle.
Dropping of the bunk
1. Throw forward the backs of driver's and pas-
senger's seats.
2. Slightly lift the upper bunk and holding it press
the the release button of retaining belt lock (see Fig. Re-
taining belt of the upper bunk).
3. Unhook the belts.
4. Lower the bunk down.
For installation of guard mesh hang the hooks
of guard mesh in the eye ring (see Fig. Installation of
guard mesh).
Bunk lifting
1. Lift the upper bunk up and hold.
2. Insert the tongues of retaining belts into belt
locks and fix them till the typical click.

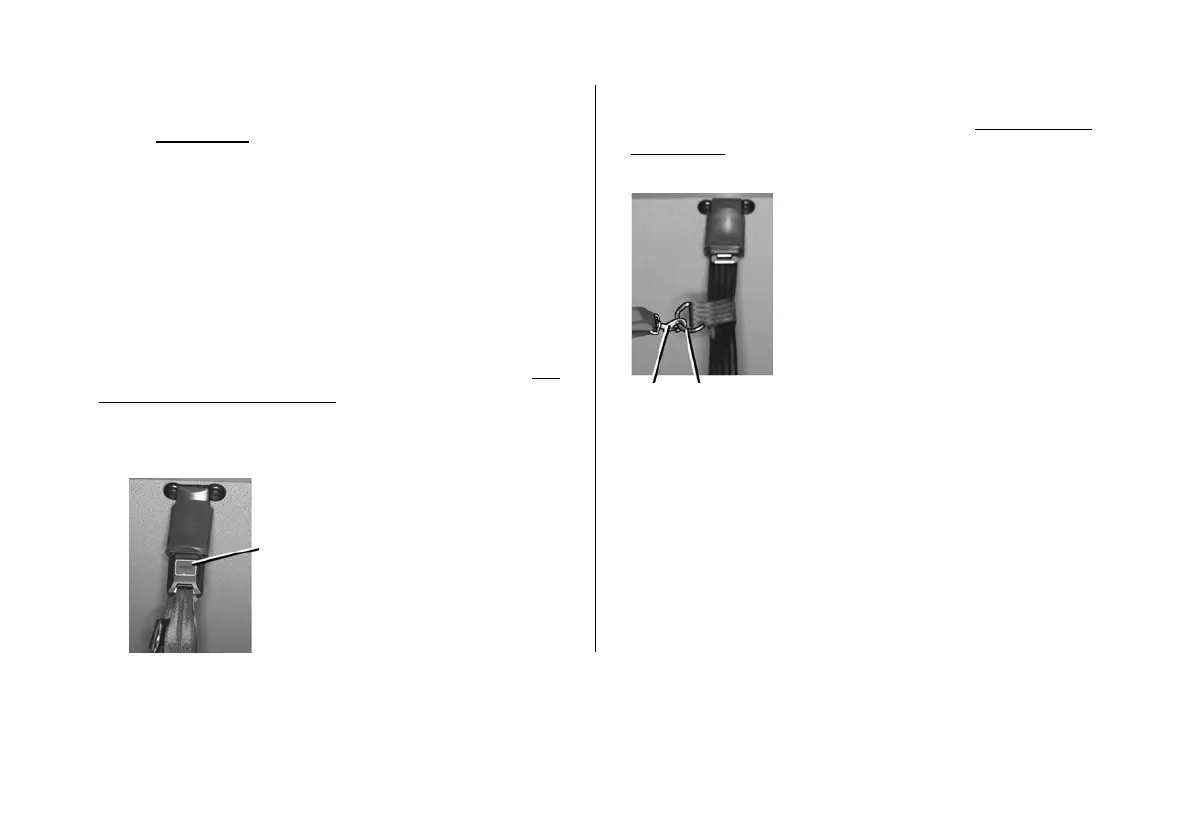

Retaining belt of the upper
bunk
1
–
release button of retaining belt
lock
1
Installation of
guard mesh
1
- hook of guard mesh; 2 - eye ring
2
1
