SWITCH BLOCKS

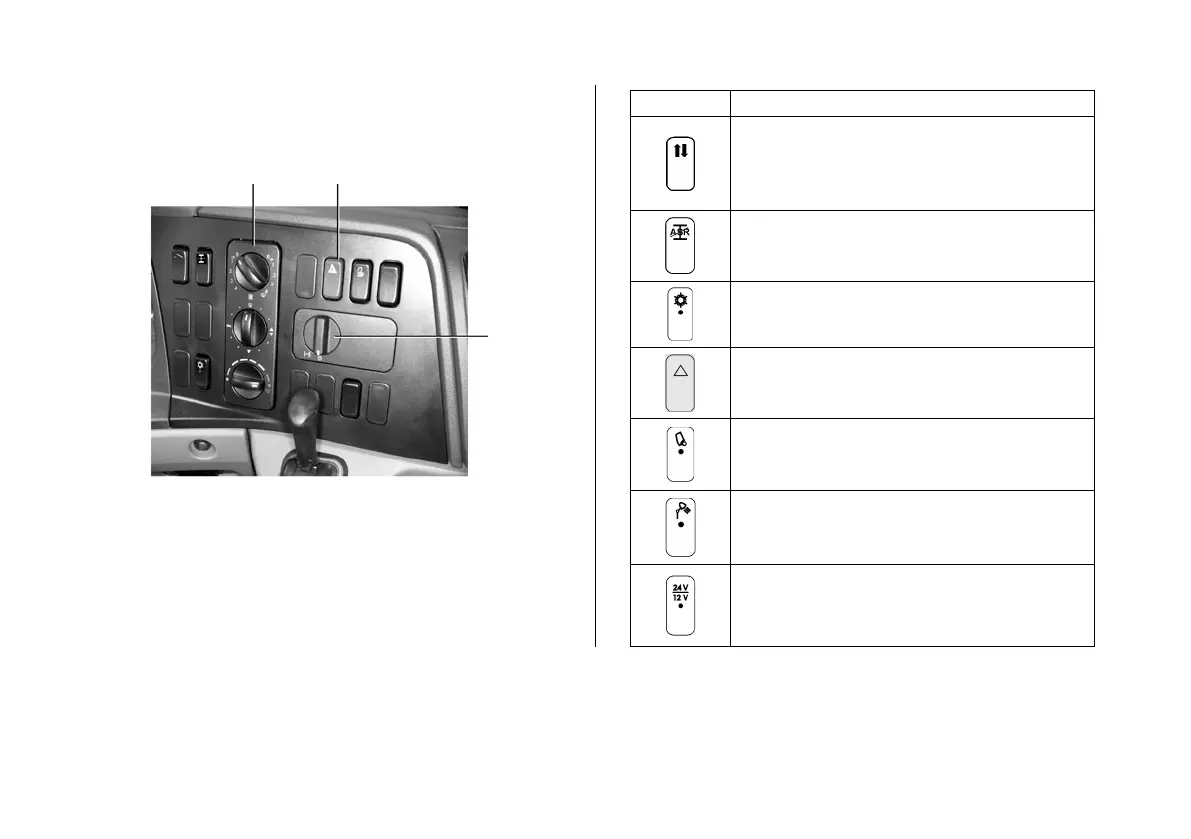

Instrument panel
1 - Switches/ shifters;
2 - control panel of heating and air conditioning
system;
3 – shifter
of interwheel differential lock.
Symbol
Application of switches/ shifters
Engagement/ disengagement of strorage
batteries.
Button is locked when ignition key is in
«ON» position
ASR mode selection
Engagement/ disengagement of air condi-
tioner
Engagement/ disengage
ment of warning
indication (color - red)
Engagement/ disengagement of cab tilting
lock
Engagement/ disengagement of hitch
mechanism flood lighting
Engagement/ disengagement of 12V volt-
age converter
1
2
3
Switches on instrument panel
