3.2 Intarder Master Switch
The Intarder is switched on or off with the main switch
(98). This applies also for actuation during travel. The
main switch is installed in the dashboard.

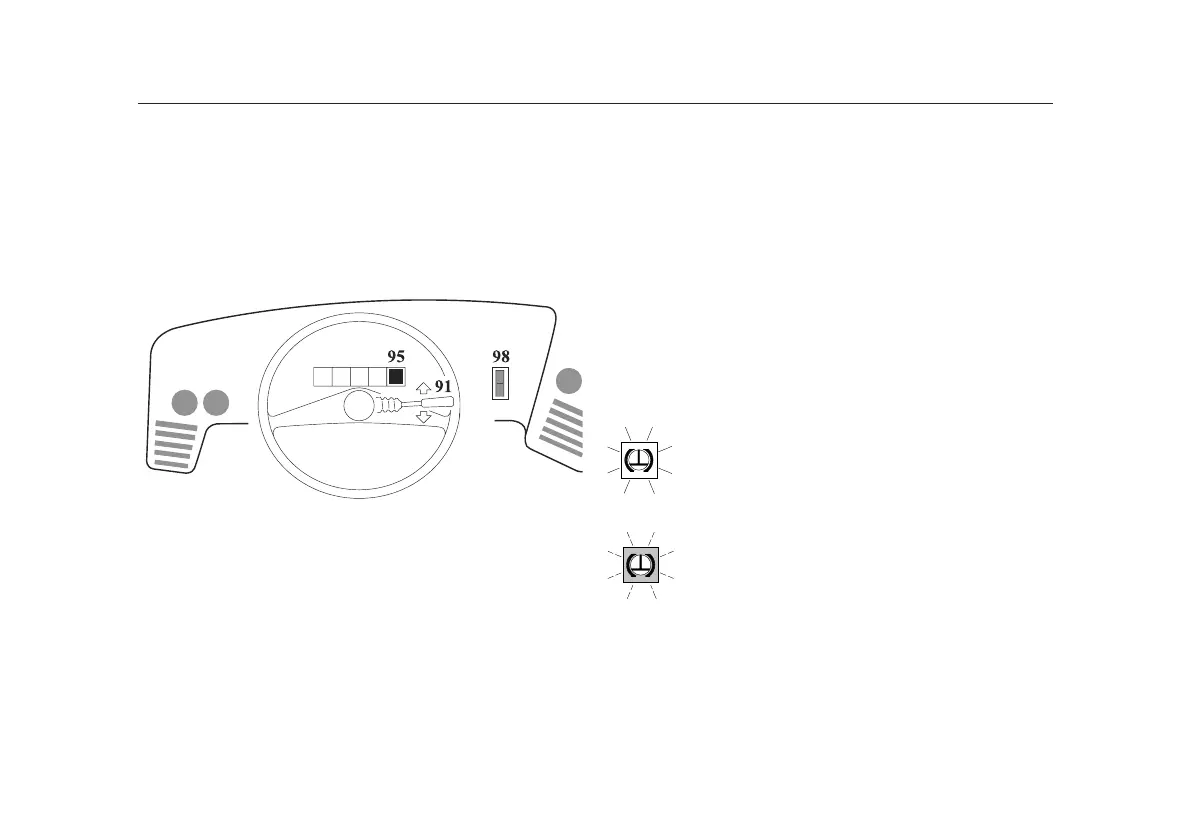

Fig. 2 Dashboard (example)
95 = Intarder check display
91 = Braking step lever
98 = Intarder main switch
3.3 Intarder Check Display
The Intarder check display lights up during Bremsomat
operation i.e. when the Intarder is active as well as during
the consistent braking steps.
NOTE
Please check whether the Intarder functions correspond
with the subsequently described illuminated displays.
Upon engagement of the ignition and the Intarder main
switch position “ON”, the Intarder system automatically
checks the functioning of the check display.
The check display lights up for 3 seconds.
In the case of a defect of the electric facility,
the check display flashes with the Intarder
engaged.
Please take your vehicle to the next ZF service workshop.
