SEAT POSITION ADJUSTMENT
Adjustment of seat position on air suspension
The angle of armrest 3 inclination is smoothly
adjusted at armrest regulator rotation.
Seat cushion depth. With lever 4 up, the cushion
displaces forward-and-backward against the base. With
lever released, the cushion is fixed in a stepped-like
manner in selected position.
Adjustment of seat inclination angle. With lever
5 shifting up the front edge of seat cushion raises, with
lever shifting down – the edge lowers down.
Longitudinal damper. With the level 6 in the
upper position the longitudinal damper is locked, in the
lower position it is unlocked.
Seat heating. Seat heating is engaged at pressing
on the upper or lower part of the button 7. Heating is en-
gaged at air temperature not more than 18 ºС.
Heating is disengaged at pressing of button into
position «0».

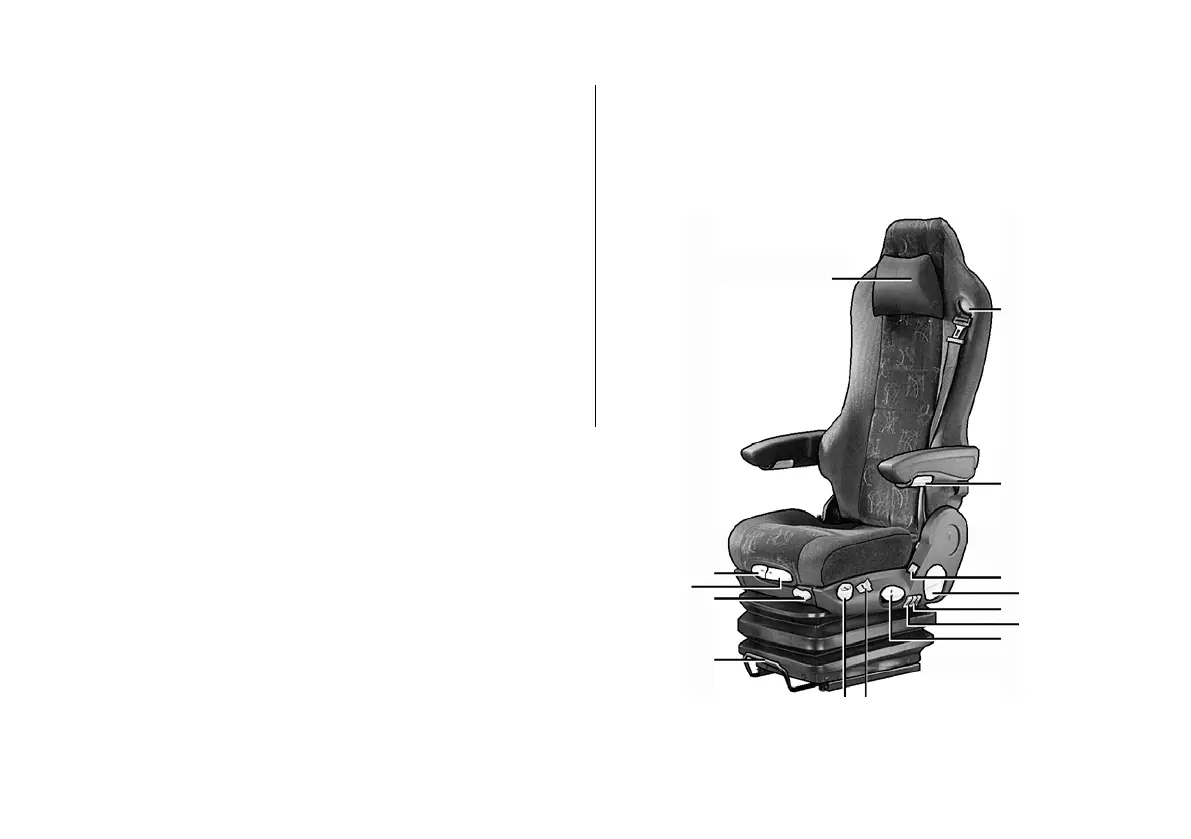

Seat on the air suspension
1
- head restraint;
2
- safety belt;
3
- adjustable armrest;
4
- adjuster of seat cushion depth;
5
- adjuster of seat inclination angle;
6
- longitudinal damper control lever;
7
- seat heating;
8
- adjuster of seat back inclination angle;
9
- adjustment of lateral support;
10
- adjustment of lumber support;
11
- adjustment of the seat height;
12
- down rush button;
13
- rigidity adjuster;
14 - adjuster of forward-backward movement
9
10
12
13
5
6
1
2
3
4
7
8
11
14
