KAMAZ 5490 - Mechanical Closure of Raisable Top Hatch; Safety Screen of the Hatch

4-22
MECHANICAL CLOSURE OF RAISABLE TOP HATCH
1. Prepare the flat screwdriver (the width of
screwdriver working end is 4 mm).
2. Remove the plug (see Fig. Closing down of lift-
ing top hatch).
3. Insert the screwdriver in the drive port.
4. Rotate the screwdriver counter clockwise till
full closing of the hatch.
5. Install the plug in the port.
SAFETY SCREEN OF THE HATCH
The hatch is equipped with a safety screen (see
Fig. Safety screen).
To close the safety screen it is necessary to pull it
out and fix it in the fixing device.

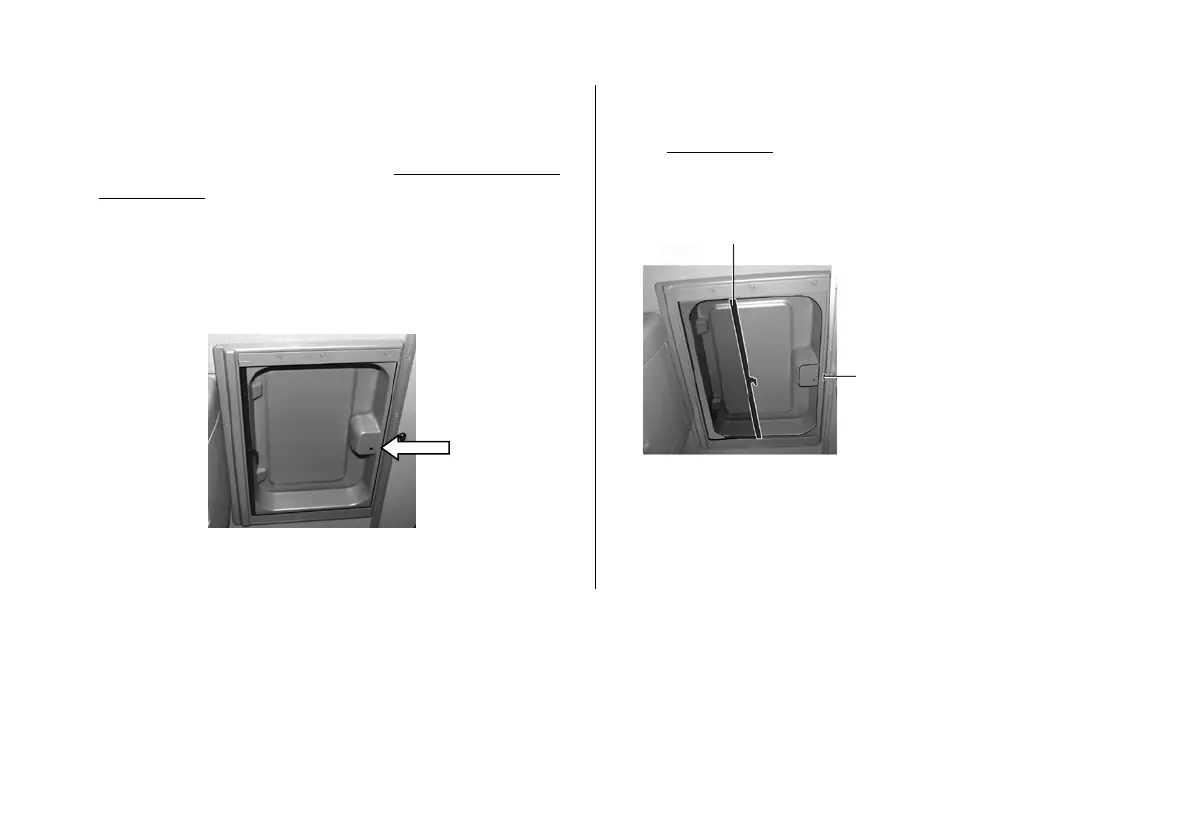

Closing down of lifting top
hatch
1
2
Safety screen
1
- safety screen;
2
- fixing device
