FACING PANEL
Facing panel is opened and closed by both hands
applying uniform force to both sides, observing maximum
distance from center of the panel (see Fig. Opening of the
upper facing panel).
Attention!
It is strictly forbidden to open and to close the
facing panel pulling it only by one edge.
For fixation of the upper facing panel in the upper
position pull the thrust from the holder and install it into
the bracket slot.
To remove the lower facing panel it is necessary to
screw out fastening screws and dismantle the panel.

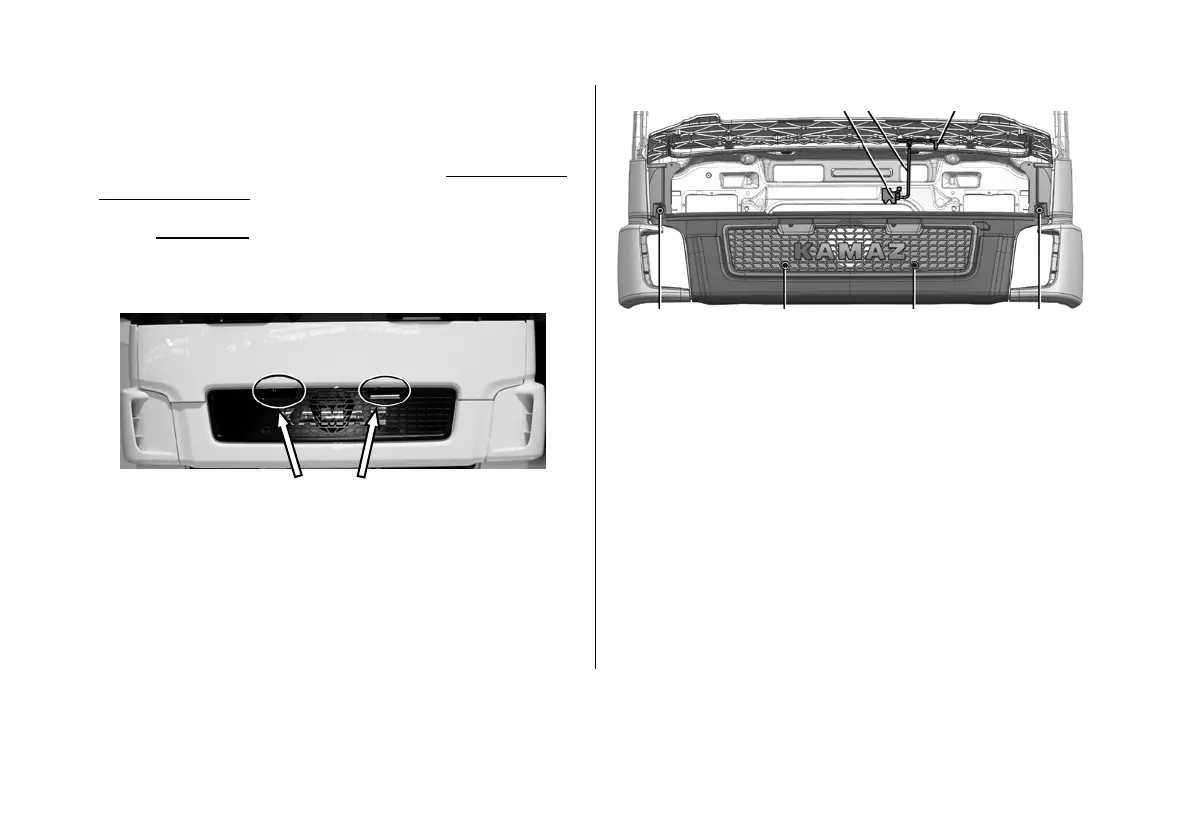

The upper and the lower facing panel
1
– bracket; 2 – thrust; 3 – holder; 4, 5, 6, 7 – screw
Opening of the upper facing panel
