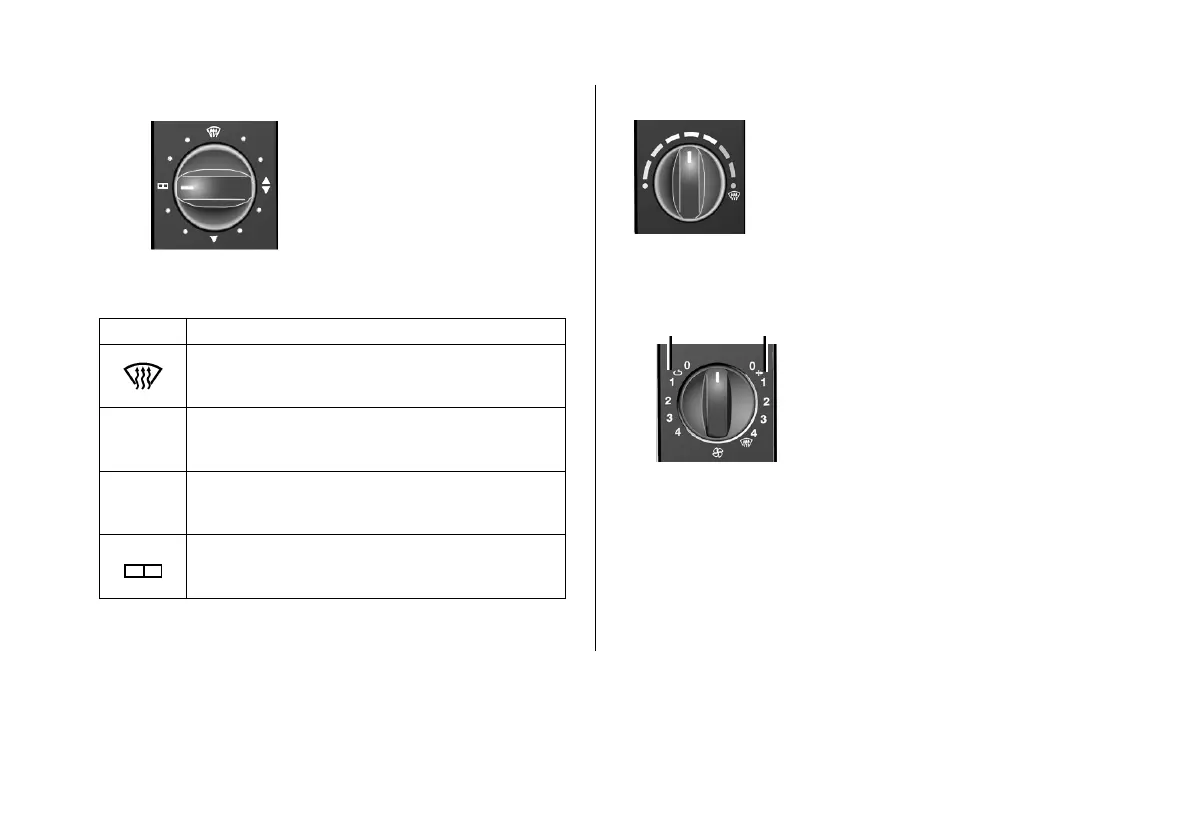

Air distribution in the cab
Positions of air distribution regulator
Symbol
Application
Air supply to the windscreen and to the
side windows
▲
▼
Air supply to the windscreen and to the
foot room
▼
Air supply to the foot room and also to
the middle and side deflectors
direct ventilation through the central and
side deflectors
Temperature setting
To increase the temperature
turn the temperature regulator to the
right, to decrease - to the left.
It is recommended to engage
the temperature regulator not less fre-
quently than once-twice a month to
maintain its operation reliability.
Air flow regulation
Positions of fan switch in air recirculation mode
0 - air recirculation is engaged;
1-4 - Air flow rate adjustment.
Positions of fan switch in the mode of fresh air:
0 - fan is disengaged;
1-3 - heating/ ventilation/ cooling;
4 - glass defrosting/ ventilation/ cooling.
Regulator
of air distribution
2
1
Fan switch
1 - air recirculation mode;
2 - fresh air mode
Temperature regulator
