KAMAZ 5490 - Page 256

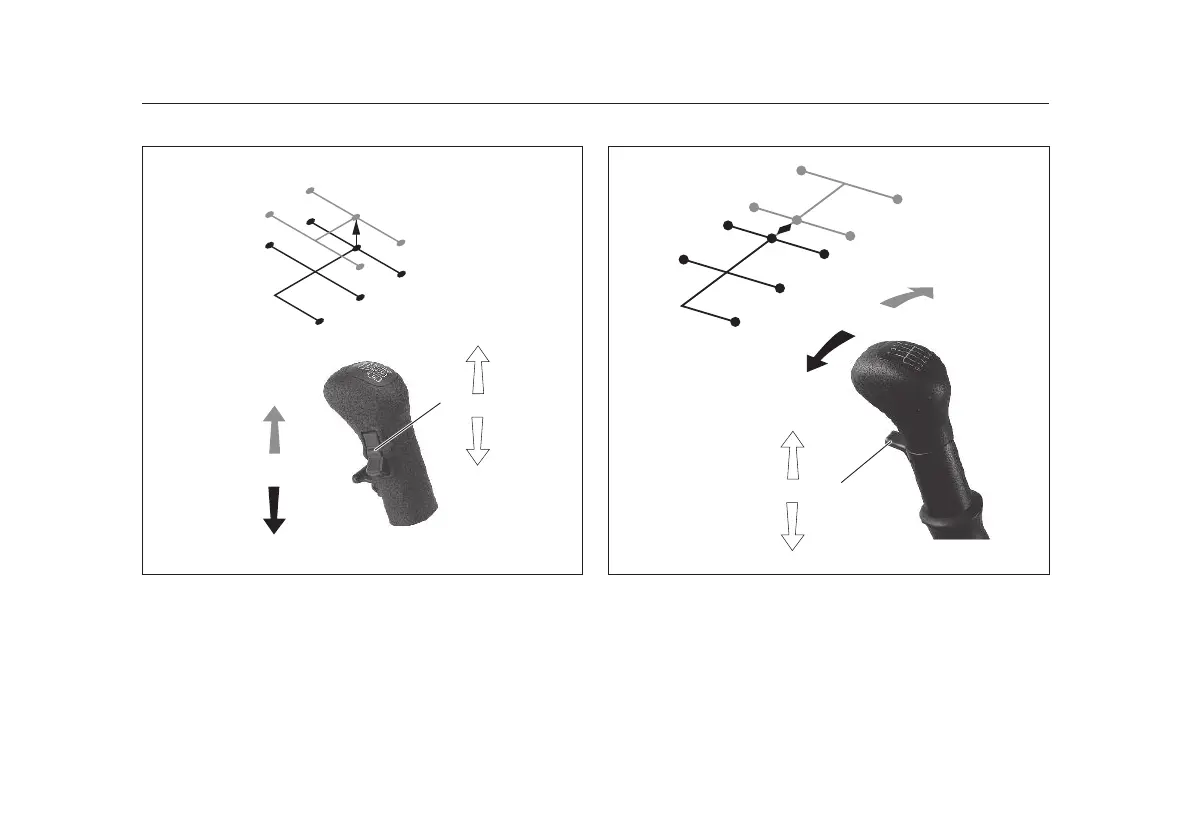

Fig. 2
Shift lever* superimposed H
Fig. 2a
Shift lever* double H
* Depending on the vehicle manufacturer, different shift levers and shift patterns are possible. As example, the standard design is shown. Also note the
details provided by the vehicle manufacturer.
R
2
4
1
3
N
N
6
8
5
7
Range change
group
high
low
Splitter group
high
low
Splitter group
high
low
Range change group
high
low
R
2
4
6
8
7
5
3
1
N
N
027416 027409
8
1341 758 101 - 2012-05
Description
